1. Product description

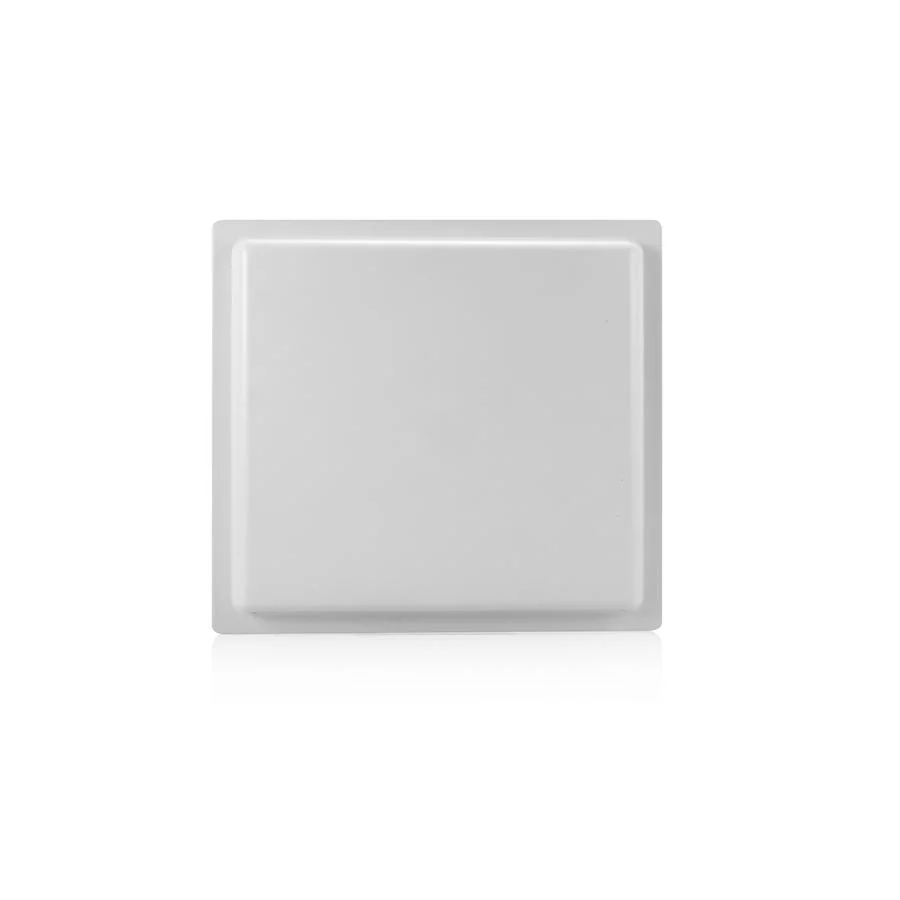

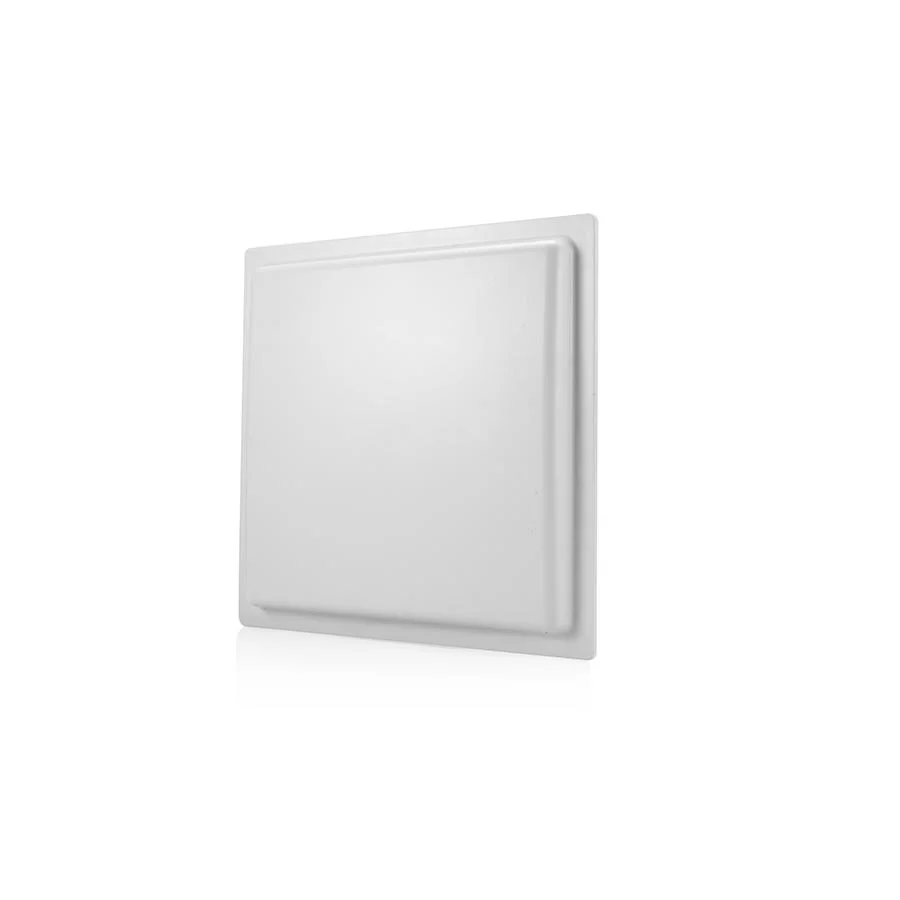

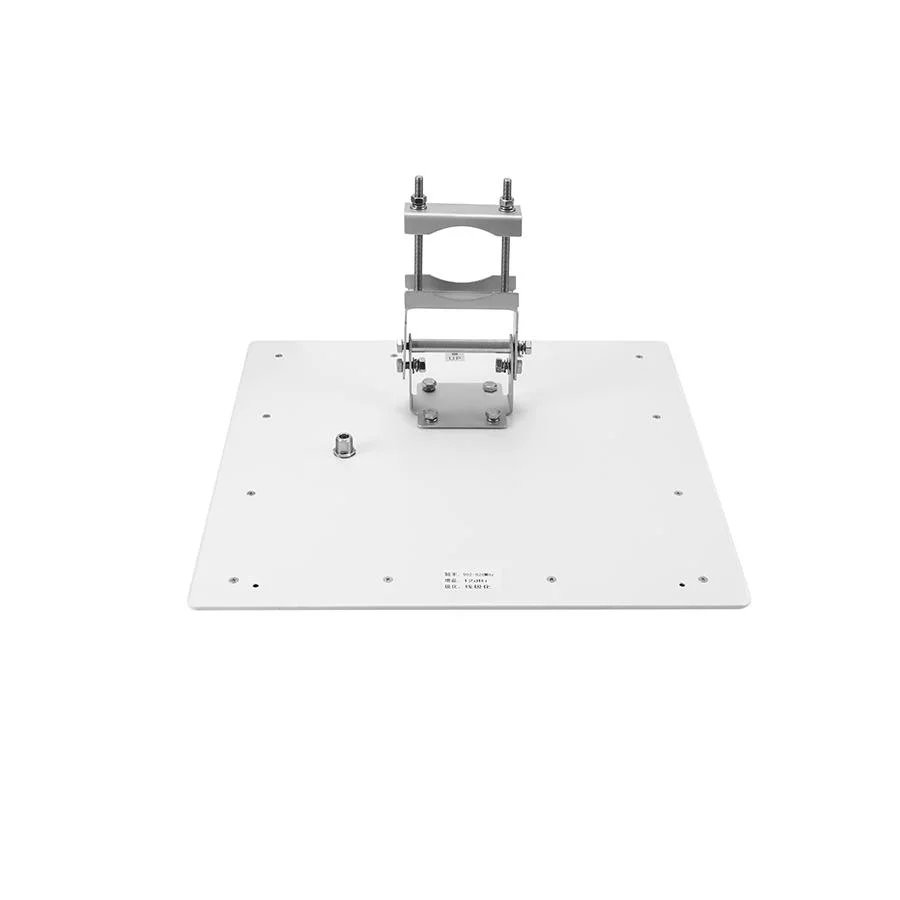

HC12DBI is a high-end long-range RFID UHF ANTENNA, its design carries the company's research and development of ultra-high frequency reader module and 12dBi circular polarization antenna, the main control chip uses a new generation of high performance ARM-COTEXM3 processor, with multi-device communication, watchdog, heartbeat packet and real-time monitoring
equipment status information. Function, and integrated with TNC port . can connect to work with 4 port ,8 port or 16 port UHF reader .
GC12DBI uses ABS + PC shell design, with waterproof, dust-proof, strong anti-interference ability and lightning protection circuit design.
Supporting ISO18000-6C protocol, it has the characteristics of compactness, portability, multi-interface, long recognition distance, high speed, high accuracy, strong anti-interference ability, good protection performance and easy installation and use.
Parameter:
NO. | Name | Parameters |
1 | Working Voltage | DC +12V |
2 | Working Temperature | -25~+65°C |
3 | Working Humidity | ≤95%(+25°C) |
4 | Storage Temperature | -40~+80°C |
5 | Tag Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
6 | Working Frequency | 840~960 MHz |
7 | Supporting Working Areas | China 1, China 2 US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Japan Korea Malaysia Taiwan |
12 | Reading Distance | ≥15m(relate to tags type, transmitted power and application environment) |
13 | Multi-tags Reading | ≥200tags/s |
19 | Antenna Type | 12dbi linear polarization antenna |
20 | Communication Port | TNC port |
21 | Buzzer | Yes |
22 | Enclosure | ABS industrial plastic case |
23 | Dimension | 445*445*40mm |
24 | IP Grade | IP67 |
