Basic Info.
Packaging & Delivery
14 days (5001 - 10000 Pieces)
To be negotiated ( > 10000 Pieces)
Product Description
| Electrical Specifications | |
| Frequency Range | 868-915-920 |
| VSWR | ≤1.5 |
| Gain | 5dBi 6dBi 8dBi 9dBi |
| Horizontal beam width | 360° |
| Vertical beam width | 30° |
| Polarization | Vertical |
| Input Impedance | 50Ω |
| Maximum input power | 50W |
| Lightning protection | DC Ground |
| Mechanical Specifications | |

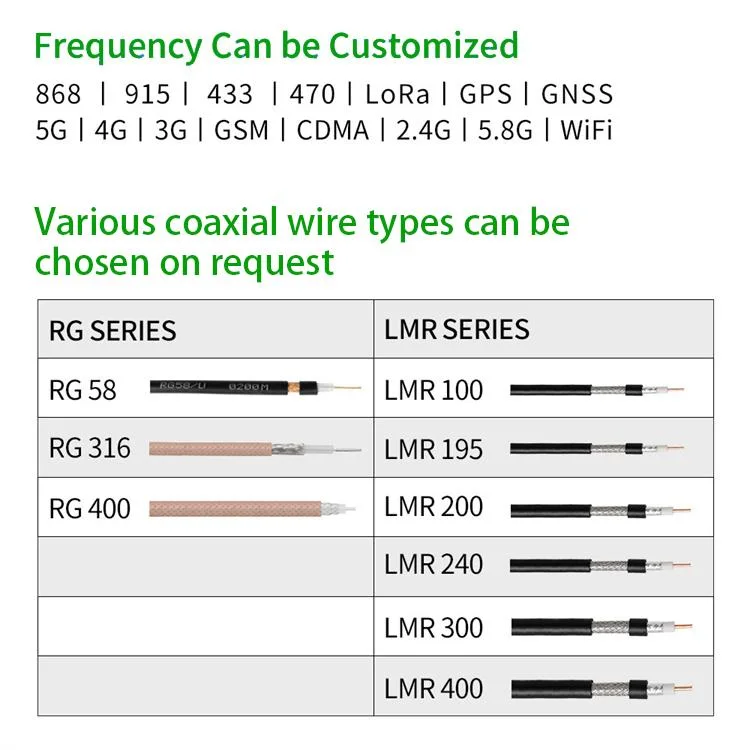

| Input connector type | N-J,2m RG58 Cable |
| Connector place | Bottom |
| Dimensions | Ф20×820mm/600mm |
| Antenna weight | 0.7kg |
| Radome material | Fiberglass |
| Radome color | gray/black/white |
| Operating temperature | -40°c~60°c |
| Rated Wind Velocity | 60 m/s |

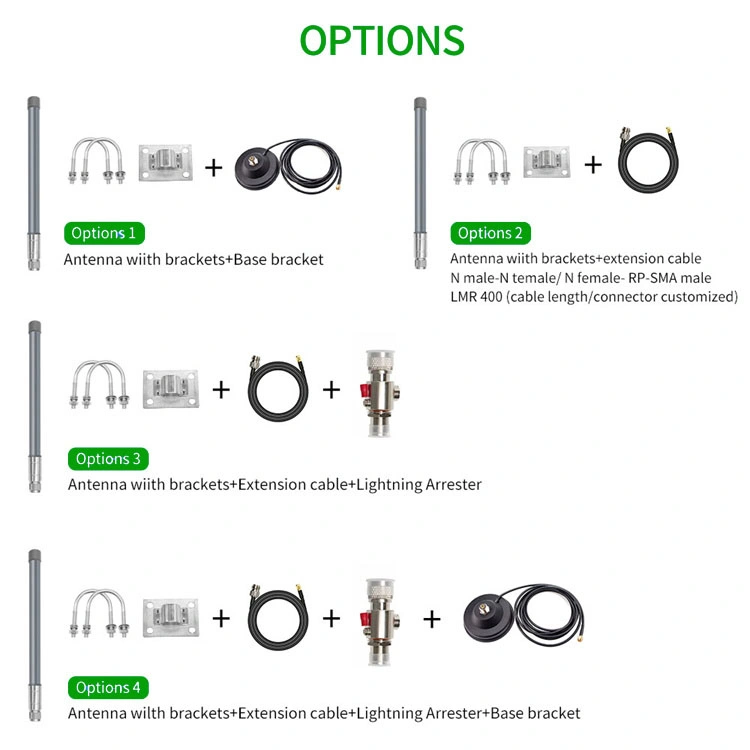

| Mounting hardware | ¢35~¢60 |
Q:Are you a factory or a trading company?
A:We are factory with 10 production line assembled workshop and a Injection molding Workshop,about 130 employees.
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect
payment.
Q:Is it customizable?
A:We can accept customization, but there is a certain MOQ; We have our own mold room, can provide mold business
Q : How long is your lead time?
A: Normally, our lead time is 10-15 days according to different products.
Q: What's your payment term?
A: We accept T/T and Paypal.
Q: Why choose our company?
A: 1. Professional manufacturer since 2011, provide various kinds of connectors and cable assembled
with connectors.
2. No MOQ demand.
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.
