Basic Info.
Model NO.
QQr Sensor
Condition
New
Standard
Standard
Language
Spanish, Chinese, Japanese, German, French, English
Update Method
by Hard Disk
Type
Diagnostic Scanner
Frequency
315MHz/433MHz
Coverage
98% Car Protocols
Region
American, Europe and Asian
Version
American and European
MOQ
100 PCS
Paypment
Paypal, Tt, Western Union
Mircochip
Freescable and Infineon
TPMS Tool
Special TPMS Tool Supported
Shipping
DHL, TNT, UPS, FedEx
Maxium Sensor
20 Sensors at Once
Sensor Valve
Metal and Rubber Changeable
Metal Valve Adjusted
Max 40 Degree
Transport Package
Paper Box
Specification
0.035KG
Trademark
Auzone
Origin
Shenzhen
HS Code
9032900090
Production Capacity
10000 PCS/Month
Packaging & Delivery
Package Size
35.00cm * 26.50cm * 18.50cm
Package Gross Weight
6.000kg
Product Description

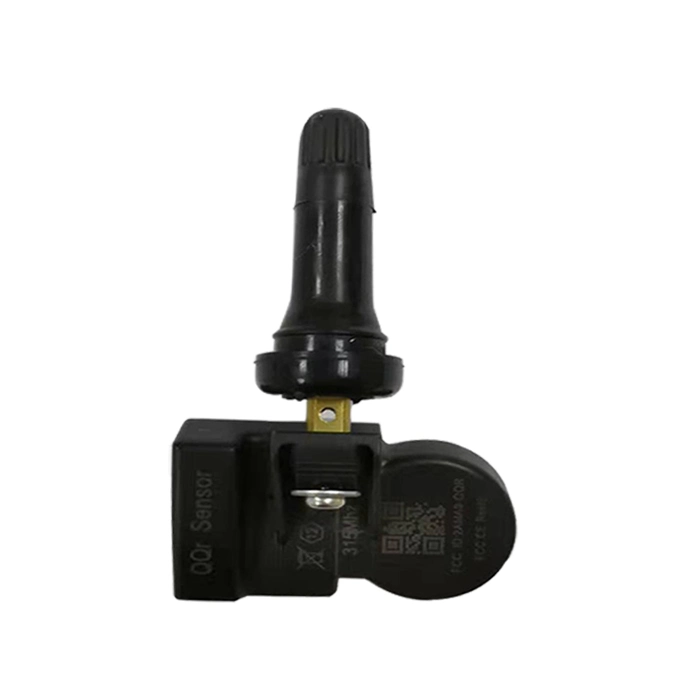

Original QQr Sensor 315/433MHz Universal Programmable Replacement TPMS Sensor
Features and function
1. Coverage:98% protocols of Aisa, Europe and North America
2. Duplicate ID to Replace OE TPMS sensors directly.
3. Sensor Programming without any LIMITATION.
3. Sensor Valve is adjustable 40 degree to meet most wheels.
4. Available for different hard enviroment. Such as high speed, High and low temperature, Humidity, acid and alkali, and salt fog ect.
5. Automatically sensor location. No need to reinstall tires.
6. Different sensor valve color for free choice.
Product Parameter
315Mhz and 433MHz sensor in ONE.
D ifferent sensor valve color for free choice.
Company Profile
Shenzhen June Electronic Co., Ltd. is special in car accessary development. Including tpms and parking sensors. Especially in tire pressure diagnosis tools, programmers and universal programmable tpms sensors for the OE and aftermarket for years. We doing our best to offer the the most stable product for customers over the world.
Features and function
1. Coverage:98% protocols of Aisa, Europe and North America
2. Duplicate ID to Replace OE TPMS sensors directly.
3. Sensor Programming without any LIMITATION.
3. Sensor Valve is adjustable 40 degree to meet most wheels.
4. Available for different hard enviroment. Such as high speed, High and low temperature, Humidity, acid and alkali, and salt fog ect.
5. Automatically sensor location. No need to reinstall tires.
6. Different sensor valve color for free choice.
Product Parameter
| Operating temperature | -40 ° C~+125 ° C |
| Relative humidity | 45%~95% |
| Storage temperature range | -40 ° C ~+125 ° C |
| Working temperature | -40ºC~105ºC |
| Pressure range | 0-900Kpa |
| Installation position | automobile wheel hub |
| Quiescent current | 0.3μA≤I≤1.0μA |
| Emission current | 1.0mA ≤I≤3.5mA |
| Operating voltage | 2.90V≤U≤3.50V |
| Emission power | 8dBm |
| Weight | 35g |
| Service life | 5-6 years |
| Waterproofing rate | IP67 |
| Transmitting power | <10dBm |
| Transmitting frequency | 433.92MHz&315MHz |
| Temperature error | 20~70 ° C : ±3 ° C, -40~-20ºC,70~125ºC :±5ºC |
| Pressure error | 0 ~50ºC :± 0.07bar, -40~0ºC , 50~85ºC :± 0.1bar |
D ifferent sensor valve color for free choice.
