Basic Info.
Model NO.
VP-4865-19-90
Base Antenna
High Gain Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Transport Package
Pulp Packing+Master Carton
Specification
700X135X35mm, 3.8KGS
Trademark
No
Origin
China
HS Code
8517710000
Production Capacity
5000PCS/Month
Product Description
4.8-6.5 GHz 19 DBi 90 Degree MIMO sector antenna with mounting bracket

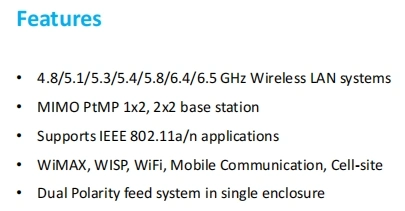

4.8/5.1/5.3/5.4/5.8/6.4/6.5 GHz wireless Lan systems
MIMO PTMP 1X2,2X2 base station
Supports IEEE 80.2.11a/n applications
WiMAX,WISP,Wifi,Mobile communication,Cell-site
Dual polarity feed system in single enclosure
Frequency Range 4800 - 6500 MHz
Gain 19 dBi
Horizontal Beamwidth(3dB) 90°
Vertical Beamwidth(3dB) 4°
Electrical Downtilt: 0°
Polarization ± 45°
F/B Ratio ≥ 26 dB
VSWR ≤ 1.8
Impedance 50 Ω

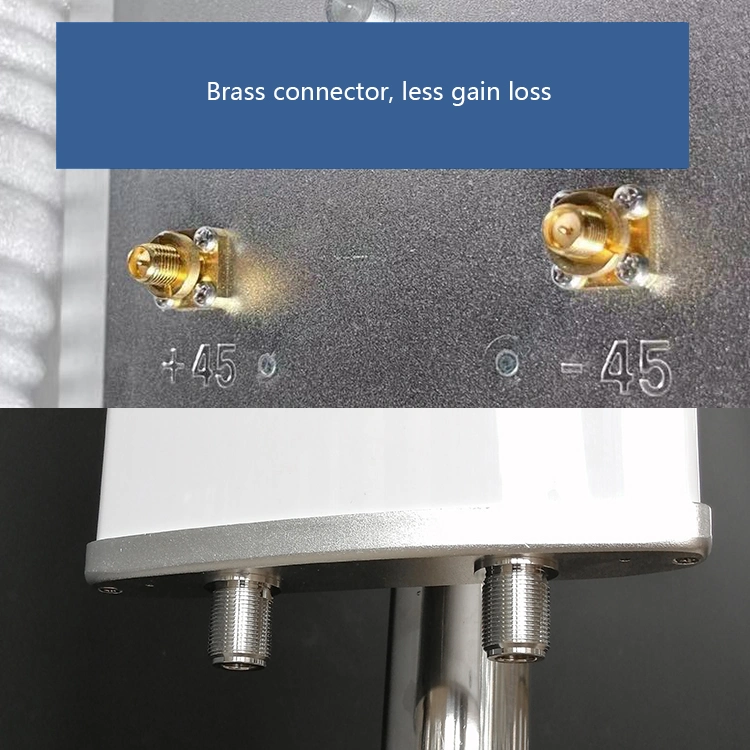

Connector 2 x SMA
Max. Power 50 W
Lightning Protection DC Ground
Dimension 700 x 135 x 35 mm
Weight 3.8 kg
Operating Temperature -35ºC~+50ºC
Wind Loading 126 m/s
Mounting Pole Mount
Description
The VP-4865-19-90 from VPoint Antennas is a high performance sector antenna specifically designed for Military-Public safety. The VP-4865-19-90 operates from 4800 to 6500 MHz which is ideal for Point to Multipoint coverage. The VPoint Antennas VP-4865-19-90 antenna has 19 dBi gain with 90° Horizontal Beamwidth and 4° Vertical Beamwidth polarization.
The 90° Horizontal Beamwidth and 4° Vertical Beamwidth antenna with Vertical + Horizontal polarization VP-4865-19-90 from VPoint Antennas has 2 x SMA connectors and 15-19 dBi of gain. The 4800-6500 MHz VP-4865-19-90 can be used with APs and Routers with 1 or 2 antenna ports. This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radios transmit and receive paths.This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.

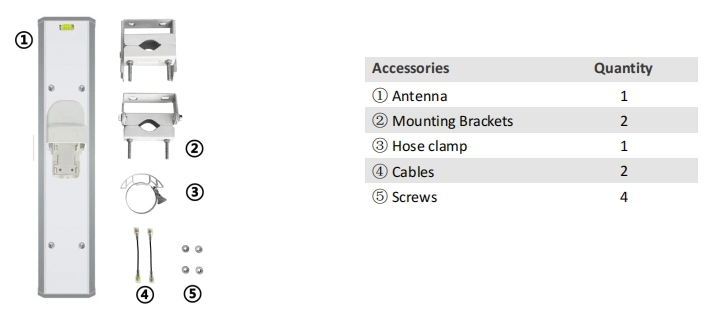

SMA x 2 connectorized VP-4865-19-90 antenna from VPoint Antennas excels in large open areas such as indoor courtyards, indoor sporting venues, convention centers and shopping malls. The mounting bracket and hardware are included for easy installation. Our expert technical support and friendly, knowledgeable customer service personnel are available to assist you with your particular needs for high performance sector antennas.
4.8/5.1/5.3/5.4/5.8/6.4/6.5 GHz wireless Lan systems
MIMO PTMP 1X2,2X2 base station
Supports IEEE 80.2.11a/n applications
WiMAX,WISP,Wifi,Mobile communication,Cell-site
Dual polarity feed system in single enclosure
Frequency Range 4800 - 6500 MHz
Gain 19 dBi
Horizontal Beamwidth(3dB) 90°
Vertical Beamwidth(3dB) 4°
Electrical Downtilt: 0°
Polarization ± 45°
F/B Ratio ≥ 26 dB
VSWR ≤ 1.8
Impedance 50 Ω
Connector 2 x SMA
Max. Power 50 W
Lightning Protection DC Ground
Dimension 700 x 135 x 35 mm
Weight 3.8 kg
Operating Temperature -35ºC~+50ºC
Wind Loading 126 m/s
Mounting Pole Mount
| Electrical | |
| Frequency range(MHz) | 4800-6500 Mhz |
| Polarization | Horizontal/Vertical/±45° Slant |
| Gain | 19 dBi |
| Azimuth 3dB beamwidth | 4° |
| Elevation 3dB beamwidth | 90° |
| Electrical downtilt | 0° |
| V.S.W.R | ≤1.8 |
| F/B ratio | ≥26 dbi |
| Cross-pol ration | 25 dB |
| Port to port isolation | 25 dB |
| Input Power | 50 W max per port |
| Impedance | 50 Ω |
| Mechanical | |
| Connector Type | SMA x 2 |
| Dimension | 700x135x35mm |
| Weight (kg) | 3.8kgs |
| Mounting method | Pipe Mount |
| Mounting pole dia | 30mm-80mm |
| Surface Finish | Matt powder coat |
| Environmental | |
| Temperature range | -45° to 65°C/+150°F |
| Wind speed | 210km/h / 130 mph |
| UV protection | UV resistant powder coat |
| Ingress protection | IP55 rain resistant |
Description
The VP-4865-19-90 from VPoint Antennas is a high performance sector antenna specifically designed for Military-Public safety. The VP-4865-19-90 operates from 4800 to 6500 MHz which is ideal for Point to Multipoint coverage. The VPoint Antennas VP-4865-19-90 antenna has 19 dBi gain with 90° Horizontal Beamwidth and 4° Vertical Beamwidth polarization.
The 90° Horizontal Beamwidth and 4° Vertical Beamwidth antenna with Vertical + Horizontal polarization VP-4865-19-90 from VPoint Antennas has 2 x SMA connectors and 15-19 dBi of gain. The 4800-6500 MHz VP-4865-19-90 can be used with APs and Routers with 1 or 2 antenna ports. This antenna incorporates advanced dual polarization technology that allows for the interoperability of two radios transmit and receive paths.This technology allows for the attenuation of unwanted signals from adjacent channels and/or co-located equipment.
SMA x 2 connectorized VP-4865-19-90 antenna from VPoint Antennas excels in large open areas such as indoor courtyards, indoor sporting venues, convention centers and shopping malls. The mounting bracket and hardware are included for easy installation. Our expert technical support and friendly, knowledgeable customer service personnel are available to assist you with your particular needs for high performance sector antennas.
