Basic Info.
Model NO.
VP-4964-30
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Transport Package
Bulb Sheet+Master Carton
Specification
600X600X120mm, 7.0KGS
Trademark
No
Origin
China
HS Code
8517710000
Production Capacity
5000PCS/Month
Product Description
4.9/5.1/5.3/5.4/5.8/6.1/6.4 GHz Wireless LAN systems
IEEE 802.11a/n applications
MIMO applications WiMAX, WISP, WiFi, mobile communication and cell-sites
Security monitor
Point-to-multipoint applications

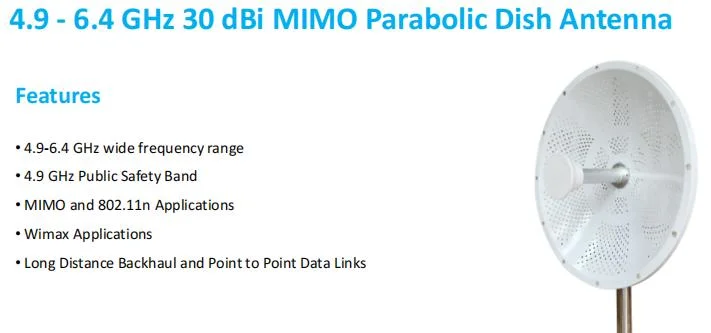

4900-6400 MHz 30 dBi MIMO Dish Antenna
Freq.: 4900-6400 MHz
Gain: 30 dBi
VSWR: ≤1.8
HPBWH: 5.5°
HPBWV: 5.5°
Polarization: Horizontal+Vertical
Innovative mounting accessories for easier installation
High F/B ratio
It is a popular MIMO parabolic antenna with the characteristics of high gain(30dBi) and high front to back ratio. It can maintain high performance in the frequency range of 4900-6400MHz and is suitable for outdoor remote point-to-point(PTP) 5GHz WiFi signal transmission to solve the problem of remote signal reception or transmission. With 1.5mm thick parabolic dish, sufficient material to get the antenna durable.
This antenna uses pure copper N-Female connector and is equipped with two low-loss RG141 jumper cables to reduce signal transmission loss and ensure high performance of the antenna.
In terms of installation details, more humanistic consideration is made for parts, making installation faster and more convenient, and improving users' experience of use.
IEEE 802.11a/n applications
MIMO applications WiMAX, WISP, WiFi, mobile communication and cell-sites
Security monitor
Point-to-multipoint applications

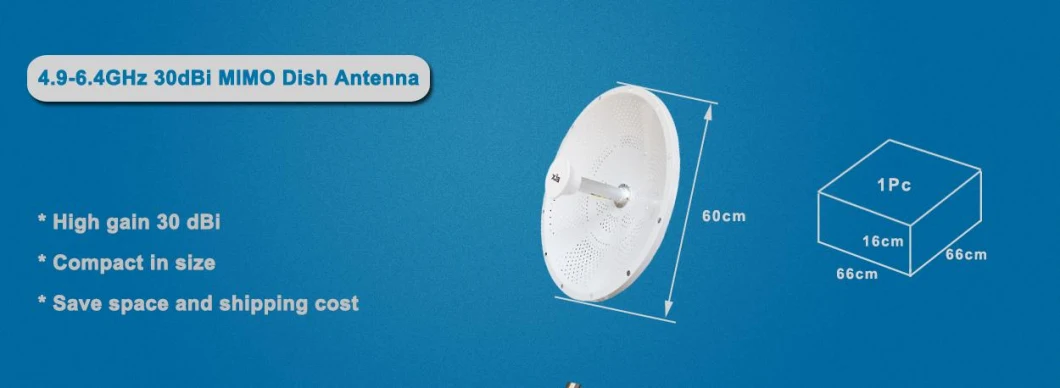

4900-6400 MHz 30 dBi MIMO Dish Antenna
Freq.: 4900-6400 MHz
Gain: 30 dBi
VSWR: ≤1.8
HPBWH: 5.5°
HPBWV: 5.5°
Polarization: Horizontal+Vertical
Innovative mounting accessories for easier installation
High F/B ratio
| Model | TDD-4964-30HV |
| Frequency Range | 4900 - 6400 MHz |
| Gain | 30 dBi |
| Horizontal Beamwidth(3dB) | 5.5° |
| Vertical Beamwidth(3dB) | 5.5° |
| Polarization | H+V |
| F/B Ratio | ≥ 32 dB |
| VSWR | ≤ 1.8 |
| Impedance | 50 Ω |
| Connector | 2 x N-Female |
| Max. Power | 50 W |
| Lightning Protection | DC Ground |
| Dimension | Dia.600 mm |
| Weight | 5 kg |
| Operating Temperature | -35ºC~+50ºC |
| Wind Loading | 130 km/h |
| Mounting | Pole Mount |
It is a popular MIMO parabolic antenna with the characteristics of high gain(30dBi) and high front to back ratio. It can maintain high performance in the frequency range of 4900-6400MHz and is suitable for outdoor remote point-to-point(PTP) 5GHz WiFi signal transmission to solve the problem of remote signal reception or transmission. With 1.5mm thick parabolic dish, sufficient material to get the antenna durable.
This antenna uses pure copper N-Female connector and is equipped with two low-loss RG141 jumper cables to reduce signal transmission loss and ensure high performance of the antenna.
In terms of installation details, more humanistic consideration is made for parts, making installation faster and more convenient, and improving users' experience of use.
