Basic Info.
Model NO.
H915DPRN12
Base Antenna
High Gain Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Connector
N Type Female
Transport Package
Bulb Sheet+Master Carton
Specification
450X450X40mm, 2.0KGS
Trademark
No
Origin
China
HS Code
8517710000
Production Capacity
5000PCS/Month
Product Description
900 MHz 12 dBi Dual Pol Flat Panel Antenna, 45-degree, 2 x Type N Female connector, H/V Dual Pol
Description

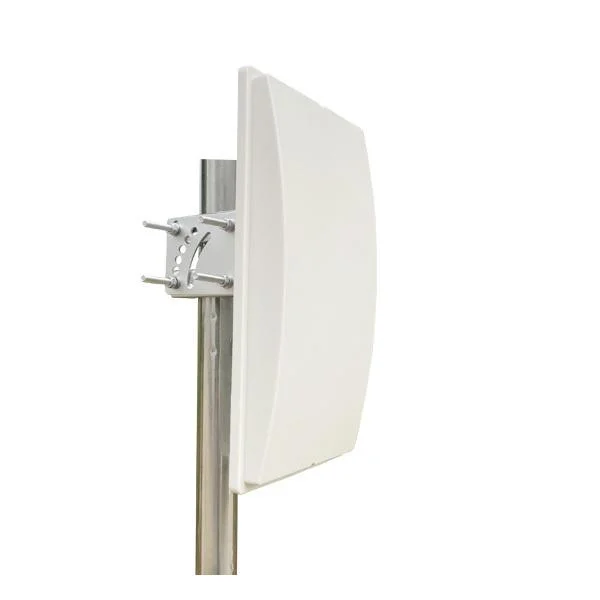

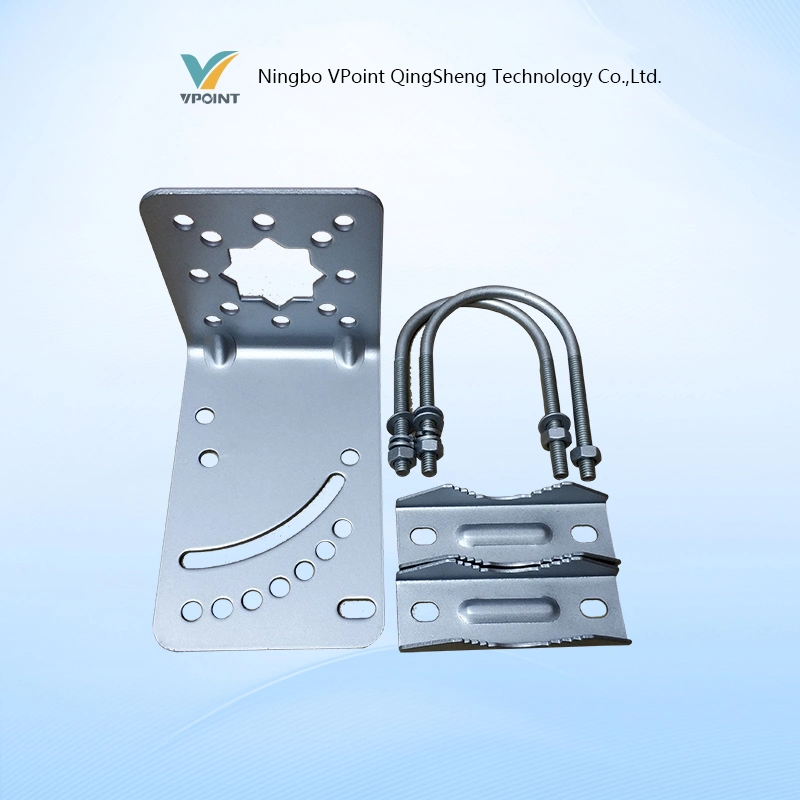

Vpoint H915DPRN12 is 900 MHz 12 dBi dual pol directional flat panel antenna that offers high gain in a thin low profile package. The H915DPRN12 flat panel antenna comes equipped with die-cast aluminum brackets which afford +/- 15 degree up or down tilt adjustment and stainless steel hardware which assures a long service life. The antenna also includes a pole mount bracket as well as an integral type-N Female connector and is constructed of a UV resistant ABS plastic radome with an aluminum backplate.
Features
Pole Mount
Rugged and Weatherproof
Vertical/Horizontal or ±35° polarization
Type N Connectors
Cables NOT included
| Electrical | |
| Frequency range(MHz) | 902~928 Mhz |
| Polarization | Horizontal/Vertical/±45° Slant |
| Gain | 12 dBi |

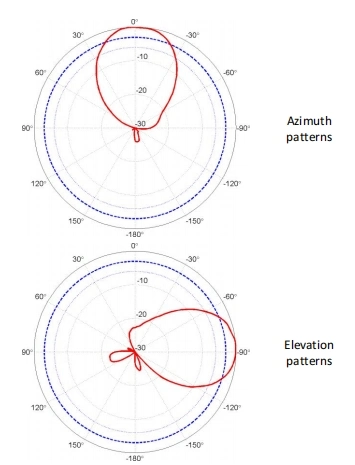

| Azimuth 3dB beamwidth | 35° |
| Elevation 3dB beamwidth | 35° |
| V.S.W.R | ≤1.3 |
| F/B ratio | ≥10 dbi |
| Cross-pol ration | 25 dB |
| Port to port isolation | 24 dB |
| Input Power | 20 W max per port |
| Impedance | 50 Ω |
| Connector Type | Type N Female x 2 |
| Lighting protection | DC ground |
| Mechanical | |
| Dimension | 450x450x40mm |
| Weight (kg) | 2kgs |
| Mounting method | Pipe Mount |
| Mounting pole dia | 31.75mm-63.5mm |
| Surface Finish | Matt powder coat |
| Environmental | |
| Temperature range | -45° to 60°C/+140°F |
| Wind speed | 160 km/h / 100 mph |
| UV protection | UV resistant powder coat |
| Ingress protection | IP55 rain resistant |
Description
Vpoint H915DPRN12 is 900 MHz 12 dBi dual pol directional flat panel antenna that offers high gain in a thin low profile package. The H915DPRN12 flat panel antenna comes equipped with die-cast aluminum brackets which afford +/- 15 degree up or down tilt adjustment and stainless steel hardware which assures a long service life. The antenna also includes a pole mount bracket as well as an integral type-N Female connector and is constructed of a UV resistant ABS plastic radome with an aluminum backplate.
Features
Pole Mount
Rugged and Weatherproof
Vertical/Horizontal or ±35° polarization
Type N Connectors
Cables NOT included
