Basic Info.
Model NO.
SG-OPA-10
Material
Al
Directionality
Directional Antenna
VSWR
1.5~2
Base Antenna
Directional Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Frequency Band
700~2700MHz
Data Signal
2g 3G 4G Message & Call & Internet
Gain
10dBi
RF Connector
N-Female
Function
Working for Repeater 2g 3G 4G Signal Booster
Receiving Distance
5~10 Km to Signal Station
Warranty
2years
Transport Package
Neutral Packing
Specification
165*155*45mm
Trademark
Sigbari
Origin
China
HS Code
8517707090
Production Capacity
5000PCS/Week
Packaging & Delivery
Package Size
70.00cm * 40.00cm * 45.00cm
Package Gross Weight
14.000kg
Product Description

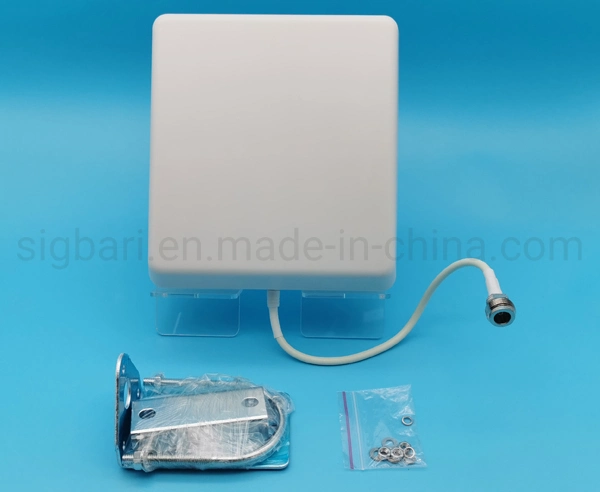

Outdoor Panel Antenna High Gain 2g 3G 4G LTE Donor Antenna 10dBi
2g 3g 4g Outdoor Panel Antenna Specification
| Electrical Parameters | |
| Model | SG-OPA-10 |
| Frequency Range | 698-960 / 1710-2700 MHz |
| Gain | 9 / 10 dBi |
| Horizontal-3dB Beamwidth | 65° |
| Vertical-3dB Beamwidth | 55° |
| VSWR | ≤1.8 / ≤1.5 |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Max Input Protection | 50 W |
| Connector | N-Female |
| Lighting Protection | DC Ground |
| Mechanical Parameter | |
| Antenna Dimension | Ф165×155×45 mm |
| Weight | 0.62 kg |
| Cover Material | ABS |
| Installation | Installation on wall |
| Operating Temperature | -40° ~ +60° |
30pcs / carton boxes Size:70*35*35cm / Gross weight: 22kg

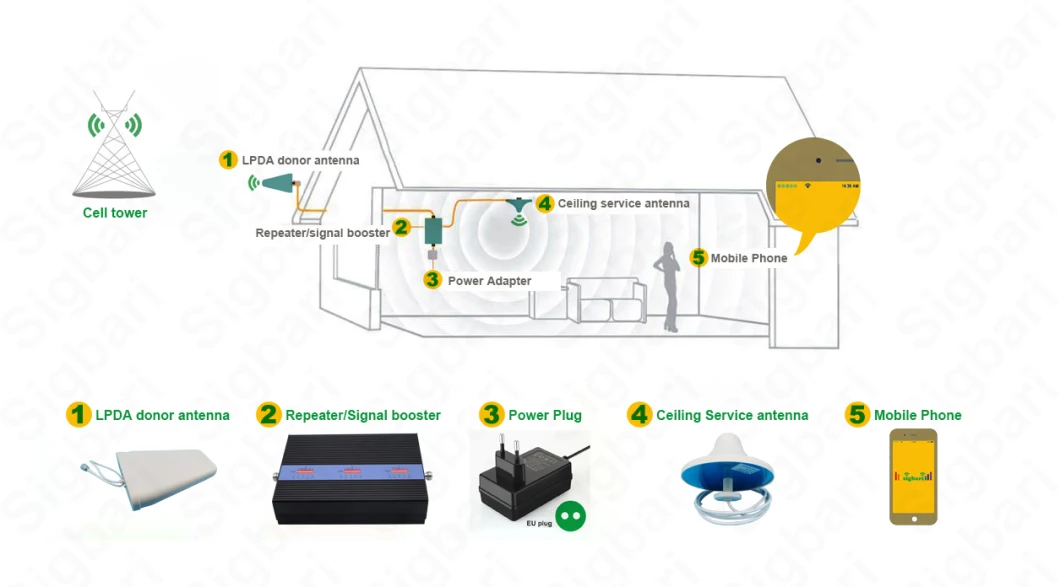

How is 2g 3g 4g donor panel Antenna working for cellphone signal booster?
if any questions or problems plase feel free to contact me, Send me email or chat with me directly for your requirements!
Thx for inquiring-Sigbari!
& you are welcome to visit us!
