Basic Info.
Model NO.
ATC-G005B
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Mounted on Rear Car Window by 3m Glue
Frequency
1575.42±1.023MHz
Gain
28±2dB
Mounted with Car
Sticked on Car Window by 3m Glue
Connector
F Type/SMA/Fakra or Others
Transport Package
Poly Bag/Color Box/Double Blister
Specification
RoHS, ISO/TS16949-2009
Trademark
ATC
Origin
China
HS Code
8529109090
Production Capacity
20, 000PCS/Month
Product Description
company information
Antenna Technology is a high-teach company in Guangdong Province. It is professionally engaged in designing, manufacturing and selling Car Antenna and mobile communication products, we always keep an eye on your demands and the developing trend of this industry, and have established a complete products system of car antenna. Our company has 10 years experience in manufacturing car antenna.The superior engineers provide precondition for product innovation, perfect production and testing equipment provide the quality guarantee for our products.
As the international enterprise, we are aiming at bringing customers the highest quality products to satisfy your expectation and needs, a large group of skilled technician work hard in order to increase the benefit for customers.
specification
| Origin | China |
| Brand | ATC |
| Model | ATC-G005B |
| Frequency | 1575.42MHz±3 |
| Polarization | RHCP |
| LNA Gain | 28dB Typical |
| Noise Fingure | 1.5dB |
| DC Voltage | 3V , 5V, 3V to 5V and so on 2.7V/3V/3.3V/5V/3~5V |
| DC Current | 5mA/10mA Max 20mA Max |
| VSWR | ≤2.0 |
| Impendance | 50Ω |
| Bandwidth MHz | ±5 |
| Peak Gain | >3dBic Based on 7×7cm ground plane |
| Gain Coverage | >-4dBic at -90°<0<+90°(over75%Volue) |
| Filter Out Band Attenuation (f0=1575.42 MHZ) | 7dB Min f0+/-20MHZ 20dB Min f0+/-50MHZ 30dB Min f0+/-100MHZ |
| Polarization | Vertical or Horizontal |
| Max power -W | 100 |
| Nominal Impedance-Ω | 50 |
| Packing | Poly Bag/Color Box/Double Blister |
| Warranty | 3 years |
packing

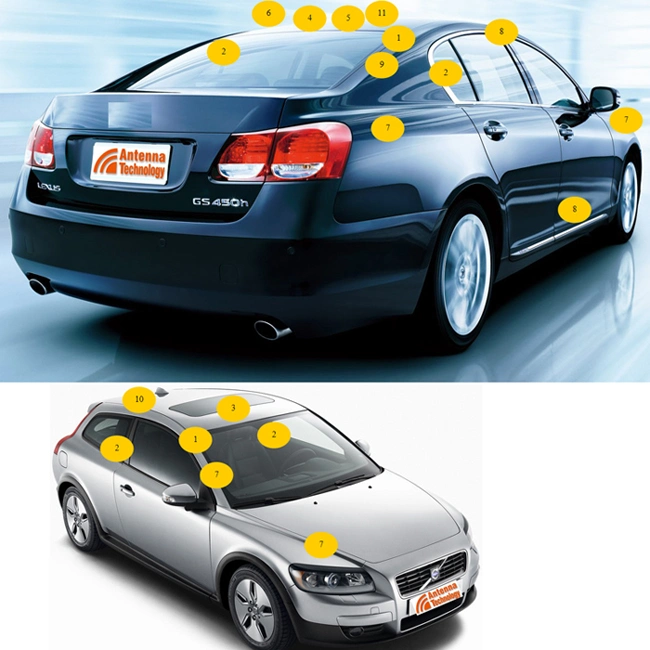

pratical application
