Basic Info.
Model NO.
GL-DY009
Material
ABS
Directionality
Rhcp+Linear
VSWR
1.5~2
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
One-Dimensional Antenna
PCS/CTN
100
Weight/CTN
12.5
Connector
SMA or Fakra or MCX
Transport Package
48*30*28cm
Specification
96.3mm*36.2*16mm
Trademark
LEHENG
Origin
China
HS Code
8529109090
Production Capacity
3000PCS/Day
Packaging & Delivery
Package Size
53.00cm * 30.00cm * 29.00cm
Package Gross Weight
20.000kg
Product Description
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB i | |
| Noise Figure | <1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710~1990MHz | |
| V.S.W.R(min) | <2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Radome Material | ABS | ||
| Mounting Method | Magnet or adhesive | ||
| Environmental | Operating Temperature | -40ºC~+85ºC | |
| Relative Humidity | Up to 95% | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
FAQ
Q: Can I receive a sample?
A: Certainly! We are pleased to offer you a sample.
Q: Do you have GNSS Antenna fully assembled and in stock?
A: No, all GNSS antennas are assembled upon receiving your order, including samples.
Q: What is the estimated delivery time?
A: For samples, the delivery time is approximately 3-5 working days. For quantities below 5K, it takes around 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Absolutely! We provide customization options for logos and designs on mass production.
Q: What are the available payment terms?
A: We accept payment through T/T, Paypal, Western Union, and more.
Q: Am I allowed to visit your company?
A: Of course! You are welcome to visit us at any time.
Q: How long is the warranty period?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty period of half a year.
Product Description:
Q: Can I receive a sample?
A: Certainly! We are pleased to offer you a sample.
Q: Do you have GNSS Antenna fully assembled and in stock?
A: No, all GNSS antennas are assembled upon receiving your order, including samples.
Q: What is the estimated delivery time?
A: For samples, the delivery time is approximately 3-5 working days. For quantities below 5K, it takes around 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Absolutely! We provide customization options for logos and designs on mass production.
Q: What are the available payment terms?
A: We accept payment through T/T, Paypal, Western Union, and more.
Q: Am I allowed to visit your company?
A: Of course! You are welcome to visit us at any time.
Q: How long is the warranty period?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty period of half a year.
Product Description:

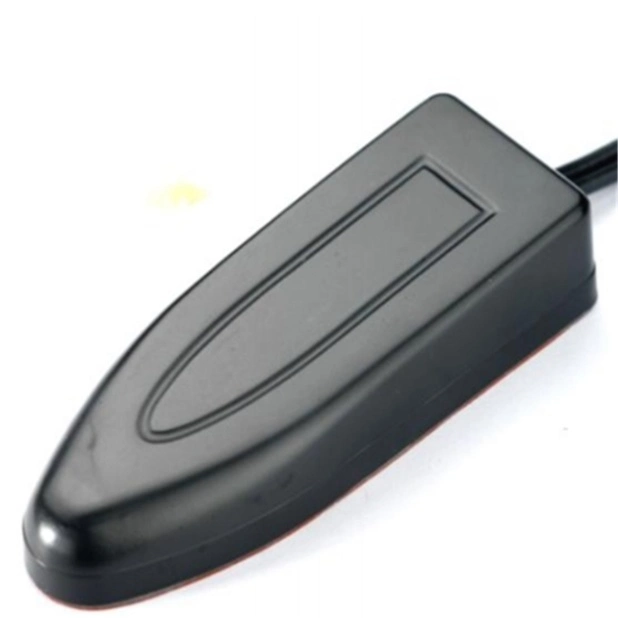

SMA Male Connector Best for Sale GPS+GSM Antenna
Introducing our top-quality GPS+GSM Antenna with an SMA Male Connector. This antenna is designed to provide exceptional performance and reliability for your communication needs. With its sleek black color and customizable cable options, it is the perfect choice for various applications.
- Use: Communication Antenna
- Working Wavelength: Microwave
Key Features:
- Combination Antenna: Our GPS+GSM Antenna combines the benefits of GPS and GSM technologies, ensuring optimal signal reception and transmission.
- Waterproof Design: Built to withstand various weather conditions, this antenna is perfect for outdoor use.
- Customizable: We offer the option to add your own logo or design on mass-produced antennas, allowing you to personalize your products.
- High-Quality Construction: Our antennas are meticulously assembled using top-grade materials, ensuring durability and long-lasting performance.
- Easy Installation: With its SMA Male Connector, this antenna can be easily connected to compatible devices.
Enhance your communication capabilities with our reliable and versatile GPS+GSM Antenna. Order now and experience the difference!
