Basic Info.
Model NO.
DL-RFID915MHz-PB257257-NZM-8
Base Antenna
Directional Antenna
Nature of Operation
Transmitting Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Polarization
Circular Polarization
Connector
N Straight Male
Lead Time
3-7 Days
Sample Time
1-3 Days
Gain
8±1dBi
Transport Package
Polybag, Paper Cartoon
Trademark
DeliNComm
Origin
China
HS Code
8517707090
Production Capacity
35000/Day
Product Description

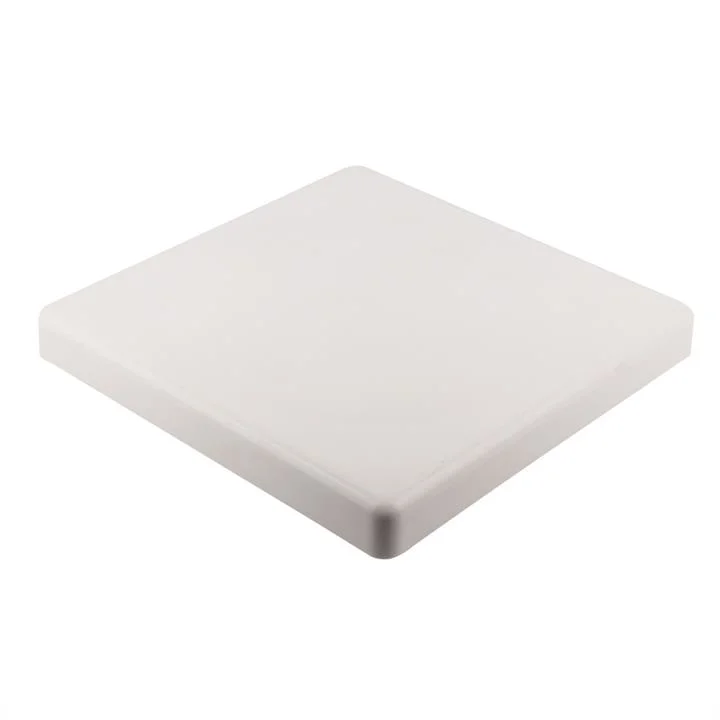

RFID Panel Antenna 915MHz Panel Antenna RFID Panel 915MHz Antenna
Antenna Technical Parameters:
| Electrical Specifications | |
| Frequency Range | 920-925MHz |
| Gain | 8±1dBi |
| Horizontal Beamwidth | 65±5º |
| Vertical Beamwidth | 65±5º |
| F/B Ratio | ≥20dB |
| Axial ratio | 3±1dB |
| V.S.W.R.(S11) | ≤1.8 |
| Impedance | 50Ω |
| Polarization | Circular Polarization |
| Max. Power | 100W |
| Connector | N straight male |
| Lightning Protection | DC grounding |
| Mechanical Specifications | |
| Dimension(mm) | 257x257x37mm |
| Weight(kg) | 0.75kg |
| Rated Wind Velocity | 36.9m/s |
| Operational Humidity | <95% |
| Operating Temperature | -40~55ºC |
| Radome Material | ABS(white) |
| Reflector Material | AI |
