Welcome to Zhengzhou Leheng Electronic Technology Co., Limited!

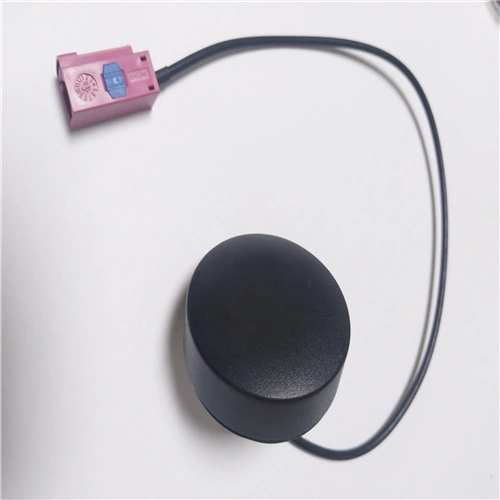

Introducing our latest product, the Fakra C and LMR100 Screw Mounting GPS/GLONASS Antenna. This antenna is perfect for applications such as automobile navigation, logistics positioning, and more.
Features:
- High stability for reliable performance
- Linearity and consistency for accurate positioning
- High gain for enhanced signal reception
- Suppression of outside-band interference for uninterrupted navigation
- Low Noise Figure for clear and precise data
Our GPS/GLONASS antenna is designed to provide you with the best navigation experience. With its high stability and accuracy, you can trust it to guide you on your journeys. The high gain ensures that you receive strong signals even in challenging environments, while the outside-band interference suppression guarantees uninterrupted navigation.
Whether you're using it for car navigation or logistics positioning, our Fakra C and LMR100 Screw Mounting GPS/GLONASS Antenna is the perfect choice. Its sleek black color and durable construction make it a reliable and stylish addition to your vehicle.
At Zhengzhou Leheng Electronic Technology Co., Limited, we are committed to providing high-quality products. Our GPS/GLONASS antenna is no exception. With its green pioneer connector and wide frequency range of 1575.42-1602MHz, you can trust that you're getting a top-notch product.
Don't miss out on this amazing GPS/GLONASS antenna. Order yours today and experience the difference it can make in your navigation and positioning needs!
| Item | Specifications | |
| Antenna | Frequency Range | 1565.42-1605.89MHZ |
| Bandwidth | 40MHz min(10db return loss | |
| Polarization | R.H.C.P | |
| Axial Ratio | 3dB(max) | |
| V.S.W.R | <=1.5 | |
| Impedance-ohm | 50 | |
| Gain | 2dBi(Zenith) | |
| Dimensions | 25*25*4mm | |
| LNA | Gain | 27dB±3 dB typ (DC=3V) |
| Noise Figure | 1.20 dB max (DC=3V) | |
| Filter Insertion Loss | <3dB | |
| Voltage | 2.75-5V | |
| Current | 16±2mA (DC=3±0.5V) | |
| External Interference Suppression | 35dB Min(800MHz-950MHz) | |
| 1800Mhz-1990aMHz | ||
| Mechnical Specifications | Radome Dimension | 14.5×46.6MM |
| Radome Material | ABS | |
| Weight | 75±5g | |
| Connector | Fakra C female or SMA | |
| Radome Color | Black | |
| Cable Model | RG174,black | |
| Cable Length | 3m | |
| Feature | High stability,Linearity,Consistency,High gain,outside-band interference suppression, Low Noise Figure | |
| Application | Automobile Navigation,Logistics Positioning and etc | |
Q: Can I get a sample?
A: Absolutely! We are happy to provide you with a sample.
Q: Do you have GNSS Antenna 100% assembled and in stock?
A: No, all our GNSS antennas are newly assembled according to your orders, including the samples.
Q: What is the delivery time?
A: For samples, it takes 3-5 working days. For quantities below 5K, it takes 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Yes, we offer customized logo and design options for mass production.
Q: What are the payment terms?
A: We accept T/T, Paypal, Western Union, and more.
Q: May I visit your company?
A: Of course! You are welcome to visit us anytime.
Q: How long is the warranty?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty of half a year.
