Product Description
Specification
Basic Construction
|
| STANDARD SHIELD |
CONDUCTOR | MATERIAL | BC/CCS |
Nom.Dia. | 20AWG | |
DIELECTRIC | MATERIAL | Foam PE |
Nom.Dia. | 3.66mm | |
SHIELD | MATERIAL | AL Foil+AL Braiding |
COVERAGE | 40%-95% | |
JACKET | MATERIAL | PVC/PE |
Nom.Thick. | 0.80mm | |
Nom.Dia. | 6.10mm |
Basic Characteristics
Nominal Impedance(ohm) | 75±3 | ||
Nominal Velocity of propagation(%) | 85 | ||
Nominal Capacitance(pf/m) | 85 | ||
Spark Test(VAC) | 2500 | ||
SRL(dB) | 20 | 20 | |
Attenuation[68°F(20ºC)] | Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) |
5 | 0.86 | 2.82 | |
55 | 2.05 | 6.73 | |
187 | 3.6 | 11.81 | |
300 | 4.45 | 14.6 | |
450 | 5.4 | 17.72 | |
600 | 6.2 | 20.34 | |
750 | 6.97 | 22.87 | |
865 | 7.52 | 24.67 | |
1000 | 8.12 | 26.64 | |

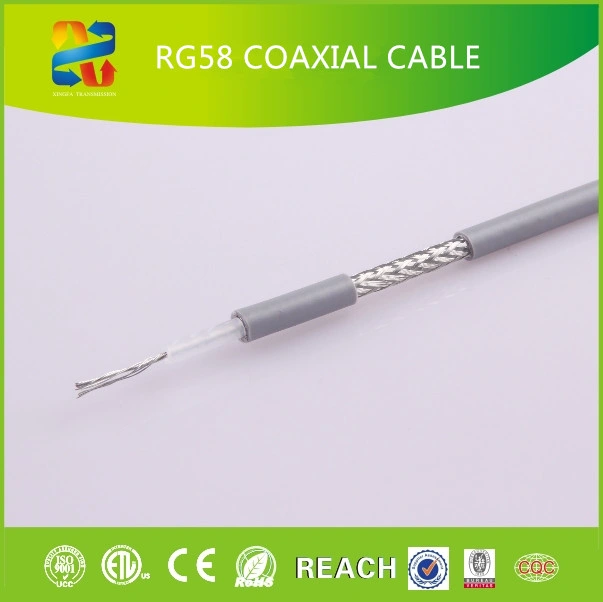

Product pictures
5 Packing details
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request
6 Our company
FAQ
What kind of cable do you produce?
We specialize in producing coaxial cable, telephone cable, speaker cable and so on.
What is your MOQ?
Usually, the MOQ is 10km.
What is your delivery time?
Usually, our delivery time is 15 days after received deposit. It is base on the quantity of the order.
What is your payment term?
Usually, we accept T/T.Other payment, we can negotiate with customers.
What is your manner of packing?
Inner Packing:
100m/roll, 200m/roll,300m/roll,100yards/roll;200yards/roll;300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum
Outer Packing:
Wooden drum, carton box, pull out box
Or according to client's request.
Can you customize cables basing on customer's sample?
Yes, of course.
