Basic Info.
Model NO.
UHF 9dbi Circular Antenna
Frequency
865~868MHz, 902~928MHz (EU&Us )
Gain
9dBi
Polarization
Circular
Transport Package
Package Size: 300*300*80mm
Specification
size: 257*257*33mm
Trademark
Focus RFID
Origin
Shenzhen
HS Code
8471900090
Production Capacity
10, 000, 000 PCS/Year
Product Description

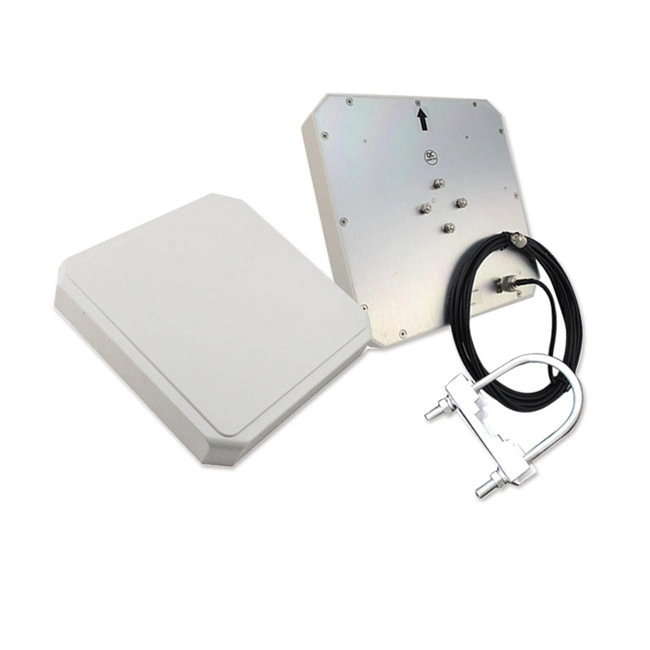

UHF Circular 9dbi Antenna
Model Number: ST-AN9002C
General Descriptions
ST-AN9002C is high performance UHF circular 9dBi antenna and the reading distance up to 6-8 meters. It is widely used in RFID system such as logistics, vehicle access control, and anti-counterfeit and industrial production process control system.
Technical Specifications
| Model | ST-AN9002C | |
| Electrical specifications | ||
| Frequency range (MHz) | 902-928Mhz/865~868Mhz | |
| Polarization | circular | |
| Gain(dBi) | 9dBi | |
| Half-power beam width(°) | Hor:60 Ver:55 | |
| Front-to-back ratio(dB) | ≥23 | |
| Impedance(Ω) | 50 | |
| VSWR | ≤1.3 | |
| Maximum input power(W) | 100W | |
| Lightning protection | DC Ground | |
| Mechanical specifications | ||
| Connector | N-female | |
| Connector position | Bottom | |
| size(mm) | 257×257×33mm | |
| Packing size(mm) | 300×300×80mm | |
| Antenna weight(kg) | 1.0kg | |
| Packing weight(kg) | 1.6kg | |
| Wind loading area(m2) | ≤0.2 | |
| Rated wind velocity(m/s) | 60 | |
| Reflector material | Aluminum | |
| Radome material | ABS | |
| Radome color | white | |
| Operating temperature(ºC) | -40~80ºC | |
