Basic Info.
Model NO.
TK418
Network
4G LTE Cat M1, Nb1, GPRS
Working Voltage
12/24/36/48/60/72VDC
Battery Capacity
140mAh
Application
Fleet Management
Positioning Mode
GPS Lbs
Optional Function
Sos or Temperature Monitoring
Voltage
9-72V DC
Accessories
Relay, Sos Cable
Chipset
Quectel Bg96
Map
Google Map
Protocol
TCP or UDP
GPS Tracking System
PC, APP
Data Transmission
Location Data, Alarm, Report Data
Transport Package
Standard
Specification
ABS PC
Trademark
keelin
Origin
Shenzhen
HS Code
8526911000
Production Capacity
1, 200, 000PCS/Year
Product Description

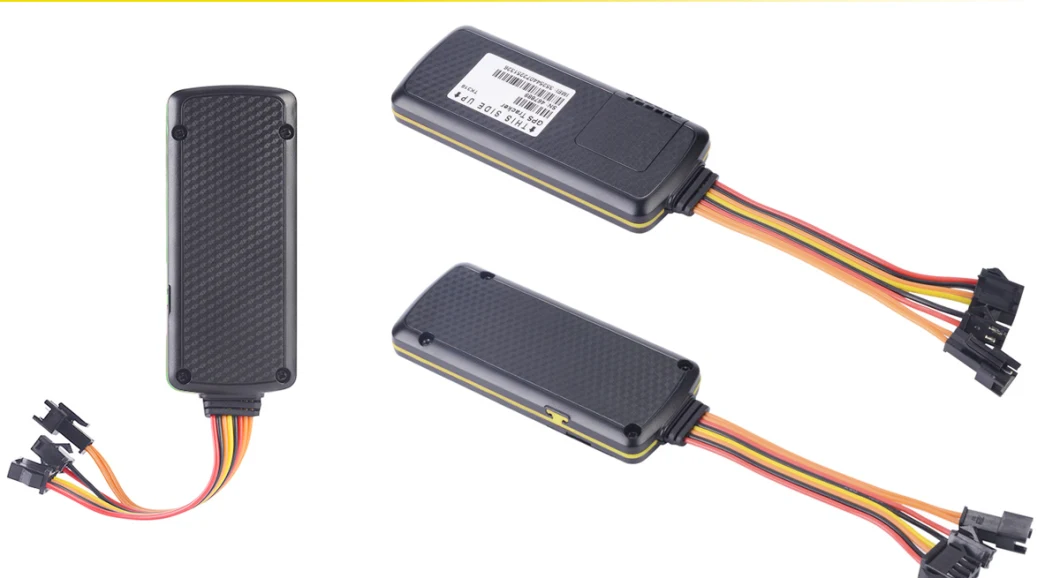

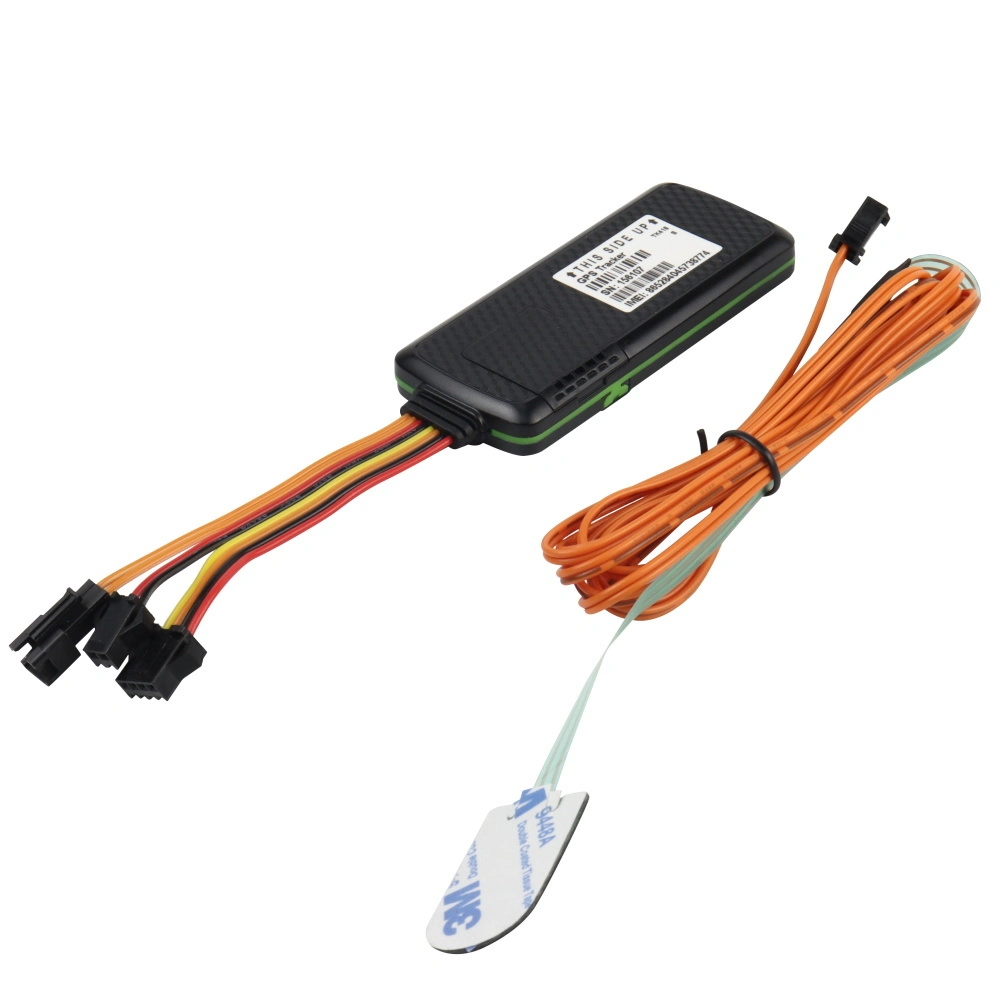

Vehicle GPS Tracking Device for GPS Tracking Solution Tk418
4G GPS Tracking device TK418 arrives, it works with LTE Cat M1 network.Real time location of the device is shown on Google map. Good GPS tracking solutions for the security of vehicle under 4G LTE Cat M1 network. LTE-M Network (Refer as 4G LTE Cat M1 network) consumes less power than 4G LTE Network. It helps to find the stolen car back by using GPS tracker.LTE Cat M1 is a new low-power wide area (LPWA) cellular technology, specifically designed for the Internet of Things (IoT) and machine-to machine (M2M) communications. It has been developed to support low to medium data rate applications with an upload/download datarate of less than 1 Mbps and can be used in both Half Duplex or Full duplex modes.
LTE-M (also referred to as LTE Cat-M1) has features that can lower power consumption to extend battery life, enhances coverage to connect hard-to-reach devices, and comes at a lower cost than standard LTE.
GPS tracking platform service is offered for all device. It helps to manage lots of device under the account.
Benefits,
- Increase fleet efficiency.
- Increase driver/operator performance
- Reduce Insurance cost
- Reduce unauthorized vehicle usage
- Improve customer satisfaction
- Increased Fleet and Workforce Security
| 1. Supports 4G LTE Cat M1/NB1, 2G GSM, worldwide used. |
| 2. Wide Input Voltage: 9-72V DC. |
| 3. GPS + LBS dual positioning, and support A-GPS |
| 4. Module Certifications and approvals, GCF (Global),CE, PTCRB, RCM, FCC,IC, JATE, Anatel, FAC, CCC etc. |
| 5. Waterproof IP65 and dustproof performance |
| 6. Intelligent real-time tracking, and report the location. Vehicle trip history and mileage data on web server |
| 7. Supports ACC status checking and vehicle status notifying. |
| 8. Built-in battery, Power disconnect alarm & Low battery alarm. |
| 9. Built-in G-sensor ,Vibration, collision and falling alarm. |
| 10. GEO-fence alarm, speed & shift alarm |
| 11. Configure with new Eelink Protocol 2.0 (TCP/UDP), the firmware can be upgraded remotely (OTA) |
| 12. Store data in blind Area. |
| 2000pcs GPS data will be logged to the device Memory when the vehicle is out of range or there is no signal or weak signal. |
| 13. With PC web page, mobile APP query, SMS inquiry and remote settings |
| 14. GPIO extension, can be extended to Serial Port. |
| 15. Optional functions. |
| - SOS |
| - External battery, |
| - Exteranl probe for monitoring temperature, Humidity, |
| - Ibutton to Identity drivers' information. Driver can NOT start the vehicle when his information is not recorded in device ibutton list. |
| - Remotely cut off petrol |
Car rental solution
Taxi management solution
Vehicle tracking solution
Trucking and logistics solution
Secure transportation solution
Service oriented transporter solution
Operation centric solution
School bus management solution
Employee commuting solution
Public safety solution
| Voltage | 9-72VDC |
| Work current | 100-250mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 5m-15m (Depending on GPS Signal) |
| GSM positioning accuracy | ~200m (Depending on density of base stations) |
| GPS Frequency | 1575MHz |
| Network | 4G LTE Cat M1/NB1, 2G GSM GPRS |
| GSM Band | (B2/ B3/ B5/ B8) 850, 900, 1800 and 1900MHz |
| LTE Band | FDD (B1,B2,B3,B4,B5,B8,B12,B13,B17,B19,B20,B25,B26,B28), TDD (B39) |
| Antenna | Internal GSM/LTE Cat M1/NB1 antenna, Internal Ceramic GPS antenna |
| Hot/warm/cold start time | <3s,<26s,<35s |
| SMS | Text-data, PDU(optional) |
| Transmit Protocol | Embedded TCP/IP, UDP/IP, PPP, HTTP/NTP/QMI etc. |
| GPRS | Class 12, TCP/IP |
| Flash Memory | 4MB for application and data storage |
| LED Indicator | GPS-Blue; GSM-Red |
| Motion sensor | Embedded 3D motion sensor |
| Detecting moving status for saving consumption. | |
| Standby time | about 2-4hours |
| Internal Battery capacity | 140mAh, For power disconnection alarm, Low battery alarm. |
| Dimensions (mm) | 89(L)X37(W)X12(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 46 g |
PTCRB.GCF,FCC,IC, Anatel. AT&T, CCC certificate for module
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory.
Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
When you use GPS tracker, Place device outside to receive satellite signals. Please do as follows,
1. Insert sim card, sim card suit 4G LTE Cat M1 network.
2. Place device outsides to receive satelllite signals. Connect device with power cable.
3. Connect red wire of devcie with Positive pole, black wire of devcie with Negative pole of external power, such as car battery. Powr on the device.
4. Red, blue led light blink fast, later slowly, intermittently.
Red light blink slowly means device connect the network.
Blue light blink slowly means device is positioned by GPS.
5. Register your account on Eelink tracking platform http://eelink.en.made-in-china.com
Activate your account, then login, device is under your account.
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
