Product Description
| Item | Specifications | |
| Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | |
| Polarization | RHCP | |
| Gain | 5dBic(Zenith) | |
| V.S.W.R | <1.5<> | |
| Impendance | 50Ω | |
| Axial Ratio | 3dB(max) | |
| Dimension | 25*25*4mm | |
| LNA | Gain | 42±2dB |
| Noise Figure | <1.5db<> | |
| Supply Voltage | 2.2~5V DC | |
| Current Consumption | 5~15mA | |
| V.S.W.R | <2.0<> | |
| Mechanical | Cable | RG58 |

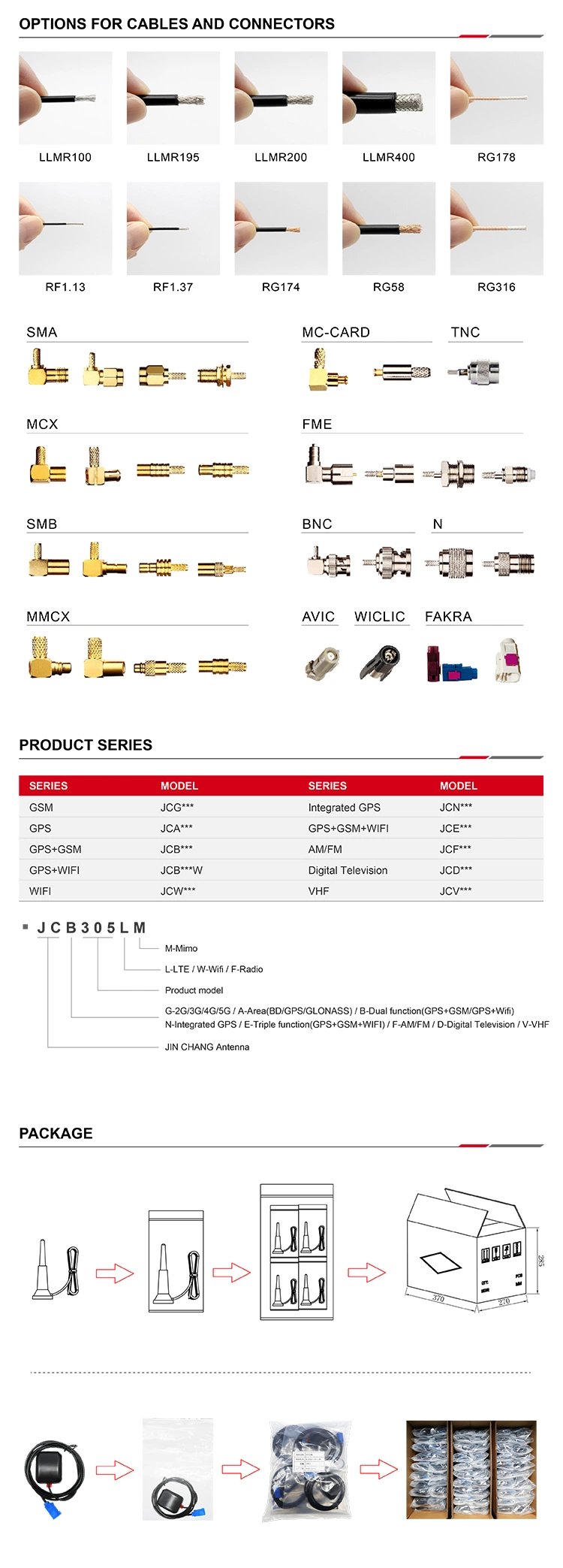

| Connector | SMA/MCX/FAKRA or others | |
| Radome Material | ABS | |
| Mounting Method | Screw | |
| Environmental | Operating Temperature | -40ºC~+85ºC |
| Relative Humidity | Up to 95% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |

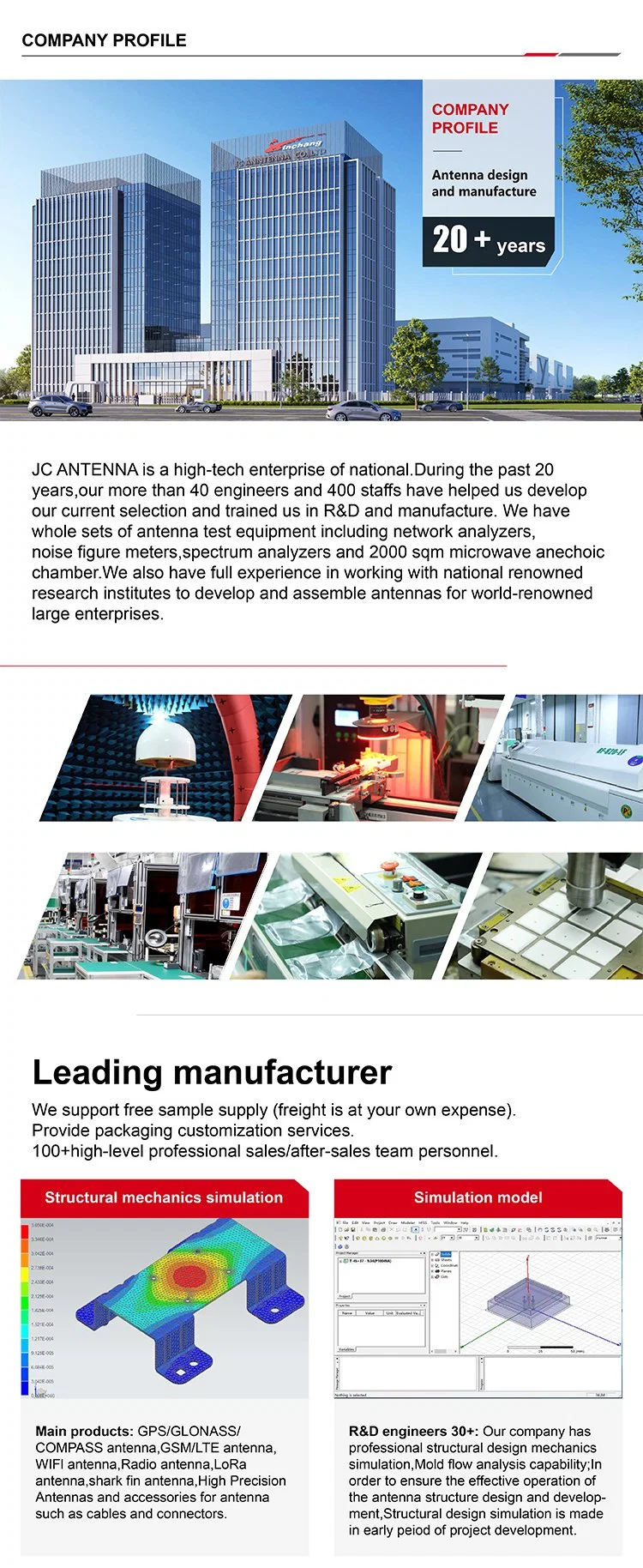

Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us,
we will pick you up with no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
