Basic Info.
Model NO.
JCN051
Material
Ceramic
Directionality
Omnidirectional Antenna
VSWR
<1.5
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
One-Dimensional Antenna
Size
25*25*4mm
Centerfrequency
1575.42MHz
Bandwidth
CF+-5MHz
Axialratio
3dB
Supplyvoltage
2.2~5VDC
Cable
RF1.13orothers
Connector
Ipexorothers
Environmentallyfriendly
Rohscompliant
Transport Package
Common or Special
Specification
rohs
Trademark
jinchang
Origin
Jiaxing, Zhejiang, Province, P. R. C
HS Code
85291010
Production Capacity
500, 000PCS/Month
Packaging & Delivery
Package Size
5.00cm * 5.00cm * 4.00cm
Package Gross Weight
0.150kg
Product Description

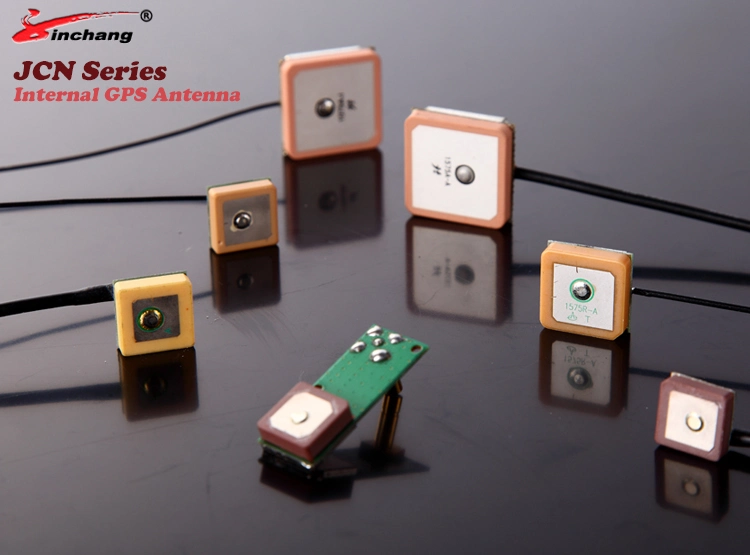

Manufacturer GPS Internal Galileo/Glonass Active Antenna For Tracker Chip Ceramic Patch Antenna
| Item | Specifications | |
| Antenna | Center Frequency | 1568±3MHz |
| Band Width | CF±5MHz | |
| Polarization | RHCP | |
| Gain | 5dBic | |
| V.S.W.R | <1.5 | |
| Impendance | 50Ω | |
| Axial Ratio | 3dB(max) | |
| Dimension | 25*25*4mm | |
| LNA | Gain | 28±2dB |
| Noise Figure | <1.5 | |
| Filter Insertion Loss | <3dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| Supply Voltage | 2.2~5V DC | |
| Current Consumption | 5~15mA | |
| V.S.W.R | <2.0 | |
| Mechanical | Cable | RF1.13 or others |
| Connector | IPEX or others | |
| Environmental | Operating Temperature | -40ºC~+85ºC |
| Relative Humidity | Up to 75% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
| Advantage: 1,Quality advantage:100% test, 5 test process during production, FA,singl time pass rate 99%, 2,Technical advantage:high gain, low attenuation, signal receiving ability 30 engineers have helped us develop our current selection and trained our 200 production workers to ensure they stay on top of the latest technology. OEM&ODM 1,R & D, design, Packing, size, color 2,Magnetic, adhesive, or screwing mouting as per customer's installation requirement. 3,Can meet your unique requirement, for example waterproof, salt spray proofing, UV protect and so on. Fast dilivery 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K. Repairing and maintanance: Replacement or maintanance for 1 year as quality guarantee |
| Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 20 years. Q: Can I get one sample? A: Yes, sample is for free. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: What's the delivery time? A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, Paypal, western union etc. Q: Where is your factory located? Can I visit your factory? A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you up with no delay. Q: How long of the warraty? A: One year and can repair for the whole life. |
