Model NO.
DL-CA-002
Base Antenna
Sihuan Array Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Connector
SMA/SMB/SMC or Other
Mounting
Magnetic
Polarization
Rhcp
Cable
Rg174
Lead Time
3-5 Days
Sample Time
1-3 Days
Certifications
Ce, RoHS, ISO9001: 2008, FCC
Weight
<110g
Transport Package
Polybag, Paper Cartoon
Origin
China
HS Code
85291010
Production Capacity
30000/Day
Product Description

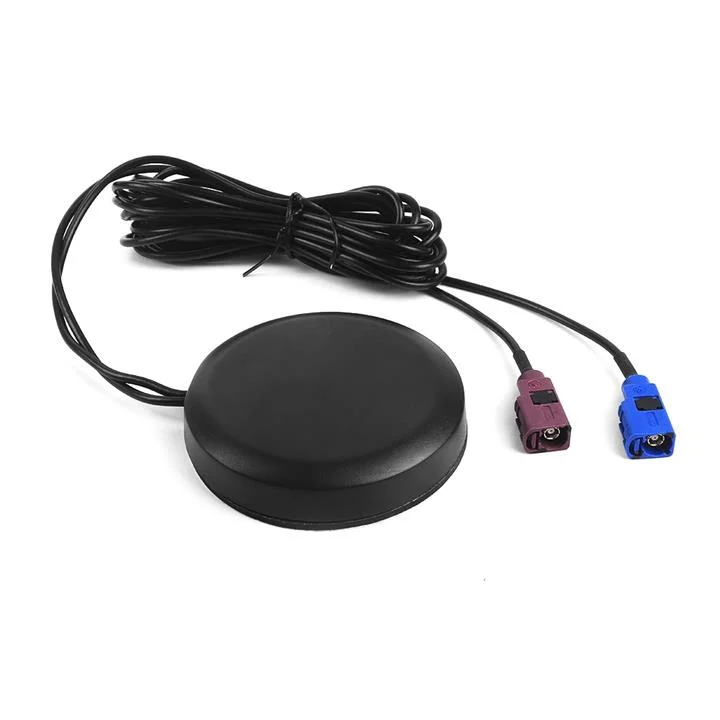

High Quality Dual-Mode Antenna GPS&Glonass Combined Antenna
Mechanical Specifications
Conditions
Antenna Characteristics
Amplifier Characteristics
Environmental Testing
Mechanical Specifications
| Size (mm) | 45*38*1mm | Mounting | 3M Sticker / Magnetic |
| Weight(g) | <125 | Connector | USB/SMA/BNC/MCX/MMCX/SMB/FAKRA/GT5 |
| Color | Black | Cable | RG174 - 3m |
Conditions
| Working Conditions | Temperature:-40ºC~+85ºC |
| Humidity: 95%~100% | |
| Storage Conditions | Temperature:-40ºC~+85ºC |
| Humidity: 95%~100% |
Antenna Characteristics
| No. | Item | Specifications | Post Environmental Tolerance |
| 1 | Range of Receiving Frequency(MHz) | GPS:1575.42± 3 GLONASS:1602± 2 | ±2.5 |
| 2 | Center Frequency(MHz) (with 30mmSpuareGND plane) | GPS:1575.42± 3 GLONASS:1602± 2 | ±3.0 |
| 3 | Band Width(MHz) (Return Loss≤-10dB) | ≥10 | |
| 4 | V.S.W.R(in Center Frequency) | ≤1.5 | |
| 5 | Gain (Zenith)(dBi typ) (with 70mmSquare GND plane) | 4.5 | ±0.5 |
| 6 | Axial Ratio (with 70mm Square GND plan) | 3.0dB | ±0.2 |
| 7 | Polarization | RHCP | ---- |
| 8 | Impedance(Ω) | 50 | ---- |
| 9 | Frequency Temperature Coefficient (ppm/ºC) | 0±10 | ---- |
Amplifier Characteristics
| No. | Item | Specifications |
| 1 | Range Of Receiving Frequency | GPS:1575.42± 3/GLONASS:1602± 2 |
| 2 | LAN Gain | 28±1 dB |
| 3 | In Center Frequency | ≤2.0 |
| 4 | Noise Figure | <2.0 |
| 5 | Supply Voltage | 3~5V |
| 6 | Current Consumption | 12±1mA@3VDC |
Environmental Testing
| No. | Normal Temperature Performance | High Temperature Test Performance Deviation | Low Temperature Test Performance Deviation |
| 1 | LNA Gain 28±1 dB | ±2 | ±2 |
| 2 | V.S.W.R (in Center Frequency) ≤2.0 | ±0.3 | ±0.3 |
| 3 | Noise Figure <2.0 | ±0.3 | ±0.3 |
