Basic Info.
Model NO.
VP-4865-29
Base Antenna
High Gain Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Surface Antenna
Dimensionality
Two-Dimensional Antenna
Transport Package
Bulb Sheet+Master Carton
Specification
420X420X120mm, 3.0KGS
Trademark
No
Origin
China
HS Code
8517710000
Production Capacity
5000PCS/Month
Product Description
4.8 - 6.5 GHz 29 dBi MIMO Dish Antenna
Model: VP-4865-29
Freq.: 4800-6500 MHz
Gain: 29 dBi
VSWR: ≤1.8
HPBWH: 6.5°
HPBWV: 6.5°
Polarization: ±45°
Innovative mounting accessories for easier installation
Compact in size, save shipping cost
It is a compact high performance 5GHz MIMO parabolic antenna. Its diameter is only 42cm but it has a high gain of 29dBi. It is suitable for outdoor remote point-to-point signal transmission to solve the problem of remote signal reception or transmission.A new design that makes the antenna smaller than many other antennas on the market, but at the same time maintains high gain and high performance. The antenna has a wide frequency band and maintains good operation in the frequency range of 4800 to 6500MHz. This antenna uses ±45° polarization mode, which ensures the stable transmission of signals with less loss during signal transmission.

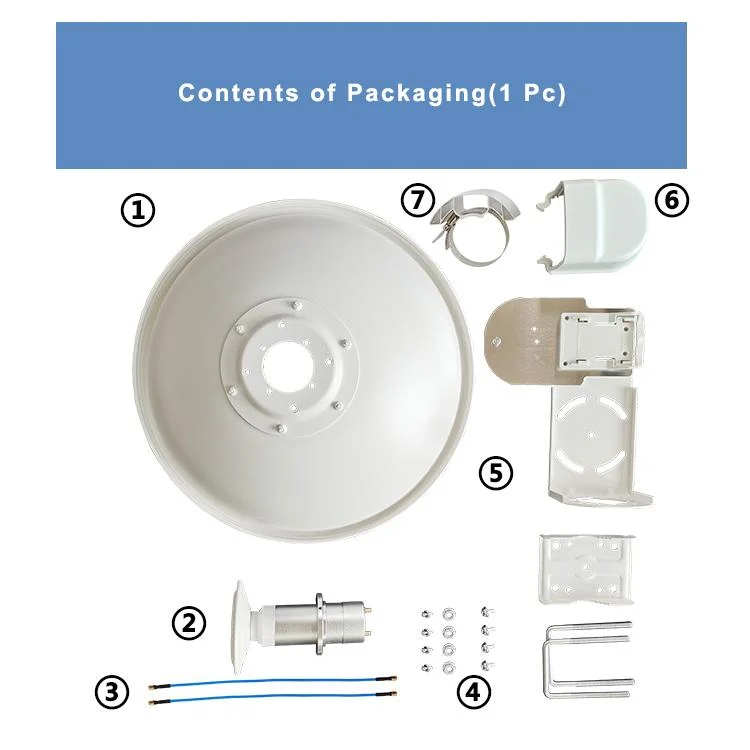

The antenna, which uses a pure copper SMA connector, is equipped with two 35cm low loss RG141 jumper cables. With good quality, it is favored by customers.

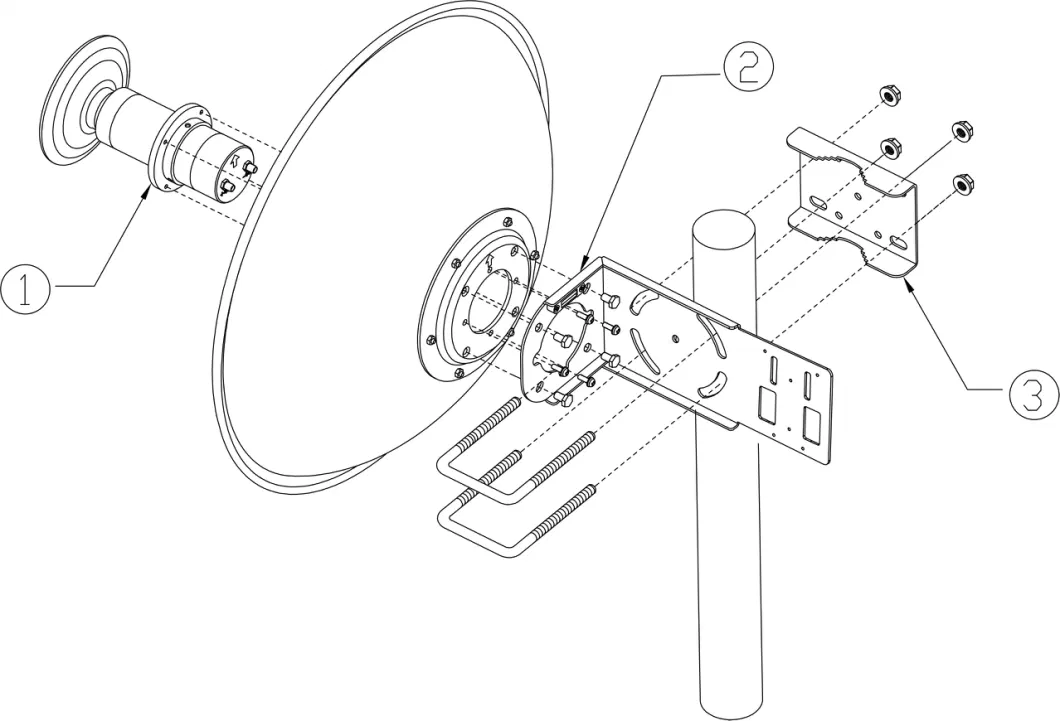

In terms of installation details, more humanistic consideration is made for parts, making installation faster and more convenient, and improving users' experience of use.

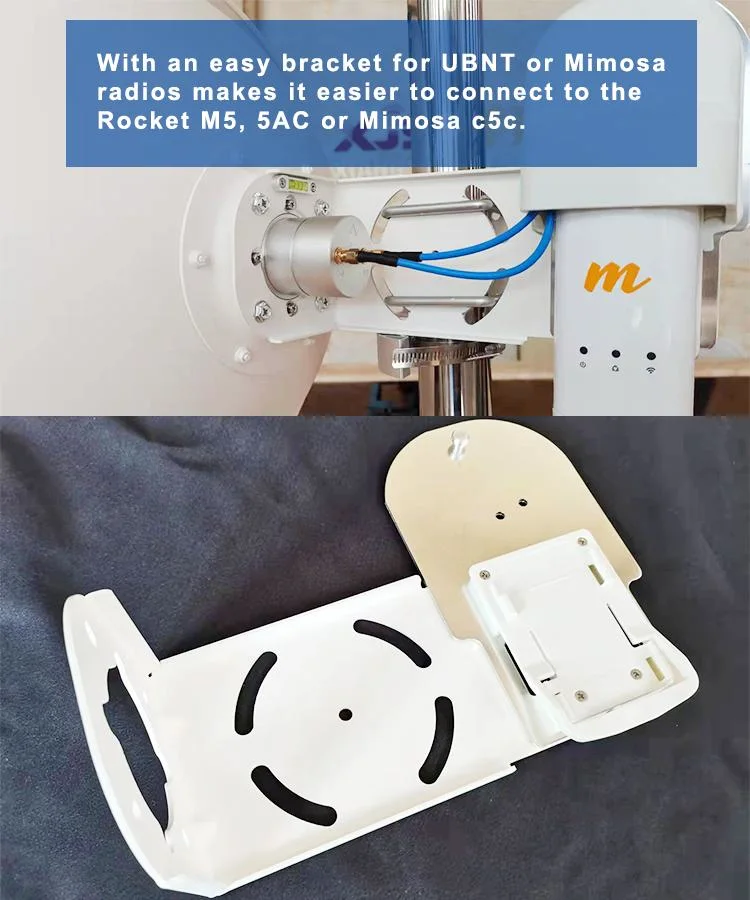

The L-shaped bracket with an easy bracket for UBNT or Mimosa radios makes it easier to connect to the Rocket M5, 5AC or Mimosa c5c.
Model: VP-4865-29
Freq.: 4800-6500 MHz
Gain: 29 dBi
VSWR: ≤1.8
HPBWH: 6.5°
HPBWV: 6.5°
Polarization: ±45°
Innovative mounting accessories for easier installation
Compact in size, save shipping cost
It is a compact high performance 5GHz MIMO parabolic antenna. Its diameter is only 42cm but it has a high gain of 29dBi. It is suitable for outdoor remote point-to-point signal transmission to solve the problem of remote signal reception or transmission.A new design that makes the antenna smaller than many other antennas on the market, but at the same time maintains high gain and high performance. The antenna has a wide frequency band and maintains good operation in the frequency range of 4800 to 6500MHz. This antenna uses ±45° polarization mode, which ensures the stable transmission of signals with less loss during signal transmission.
The antenna, which uses a pure copper SMA connector, is equipped with two 35cm low loss RG141 jumper cables. With good quality, it is favored by customers.
In terms of installation details, more humanistic consideration is made for parts, making installation faster and more convenient, and improving users' experience of use.
The L-shaped bracket with an easy bracket for UBNT or Mimosa radios makes it easier to connect to the Rocket M5, 5AC or Mimosa c5c.
| Frequency Range | 4800 - 6500 MHz |
| Gain | 29 dBi |
| Horizontal Beamwidth(3dB) | 6.5° |
| Vertical Beamwidth(3dB) | 6.5° |

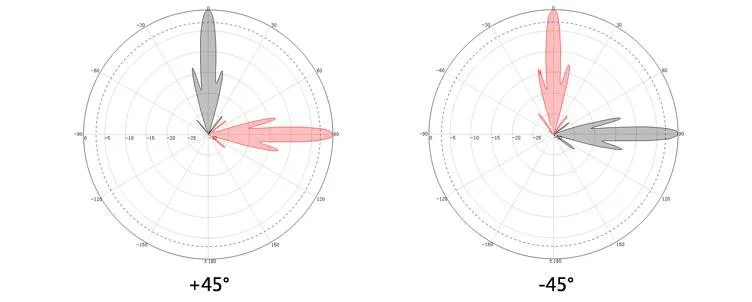

| Polarization | ± 45° |
| F/B Ratio | ≥ 30 dB |
| VSWR | ≤ 1.8 |
| Impedance | 50 Ω |
| Connector | 2 x SMA |
| Max. Power | 50 W |
| Lightning Protection | DC Ground |
| Dimension | 420 x 420 x 120 mm |
| Weight | 3.4 kg |
| Operating Temperature | -35ºC~+50ºC |
| Wind Loading | 126m/s |
| Mounting | Pole Mount |
