Product Description
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| GSM Antenna | Frequency Range | 824~960MHz/1710~2170MHz | |
| V.S.W.R | <2.5 | ||
| Polarization | Linear | ||
| Gain | 2dBi | ||
| Impendance | 50Ω | ||
| FM/AM Antenna | Frequency Range | 520~1629KHz/76~108MHz | |
| V.S.W.R | <2.5 | ||
| Polarization | Linear | ||
| Gain | 20/12dBi | ||
| Impendance | 50Ω | ||
| Supply Voltage | 12V DC | ||
| Environmental | Operating Temperature | -40ºC~+85ºC | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP65~IP66 (exclude cable outlet) | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
Q: Can I receive a sample?
A: Certainly! We are pleased to offer samples of our products.
Q: Do you have GNSS Antenna 100% assembled and in stock?
A: No, all GNSS antennas are assembled according to your specific order, including samples.
Q: What is the estimated delivery time?
A: For samples, the delivery time is approximately 3-5 working days. For quantities below 5K, it is around 10-15 working days.
Q: Can I use my own logo or design on the goods?
A: Absolutely! We offer customization options for logos and designs on mass production orders.
Q: What are the available payment terms?
A: We accept various payment methods, including T/T, Paypal, and Western Union.
Q: Am I allowed to visit your company?
A: Of course! You are welcome to visit our company at any time.
Q: How long is the warranty period?
A: Our antennas come with a one-year warranty, while assembly cables and connectors have a warranty period of half a year.
Product Description:

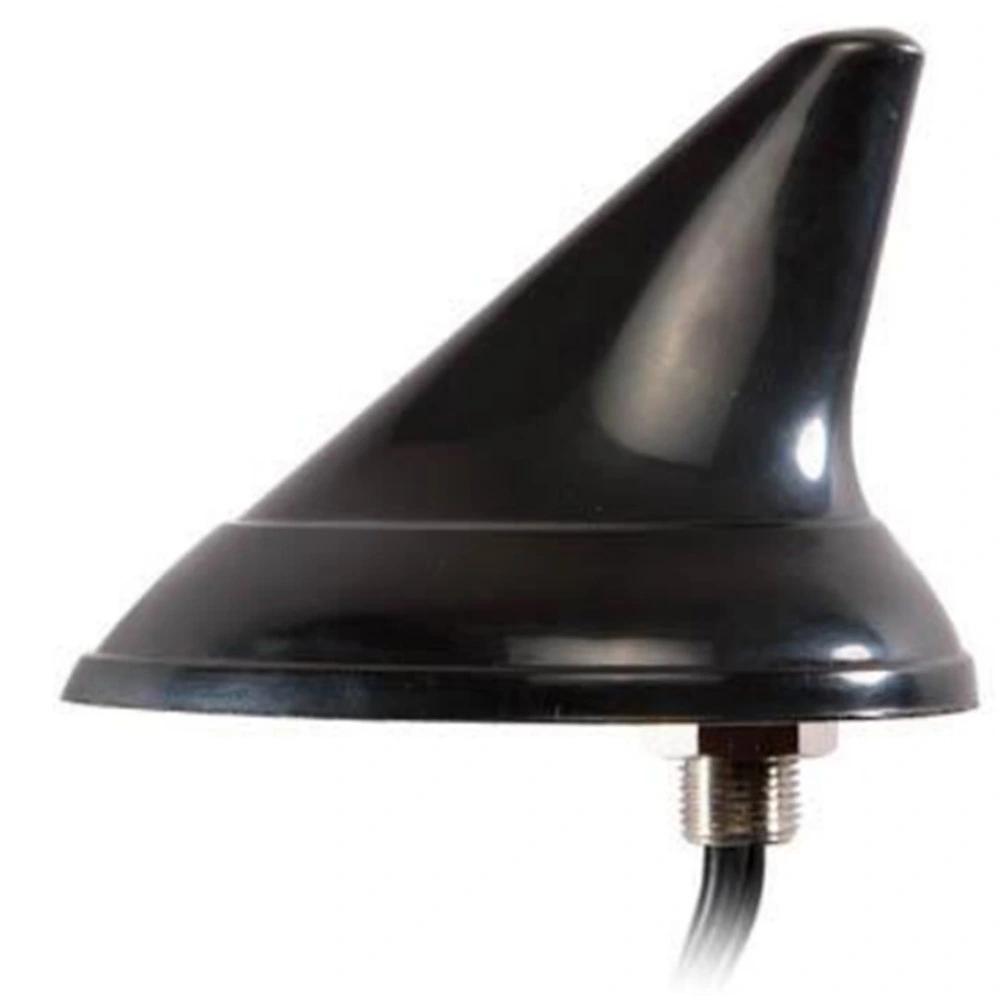

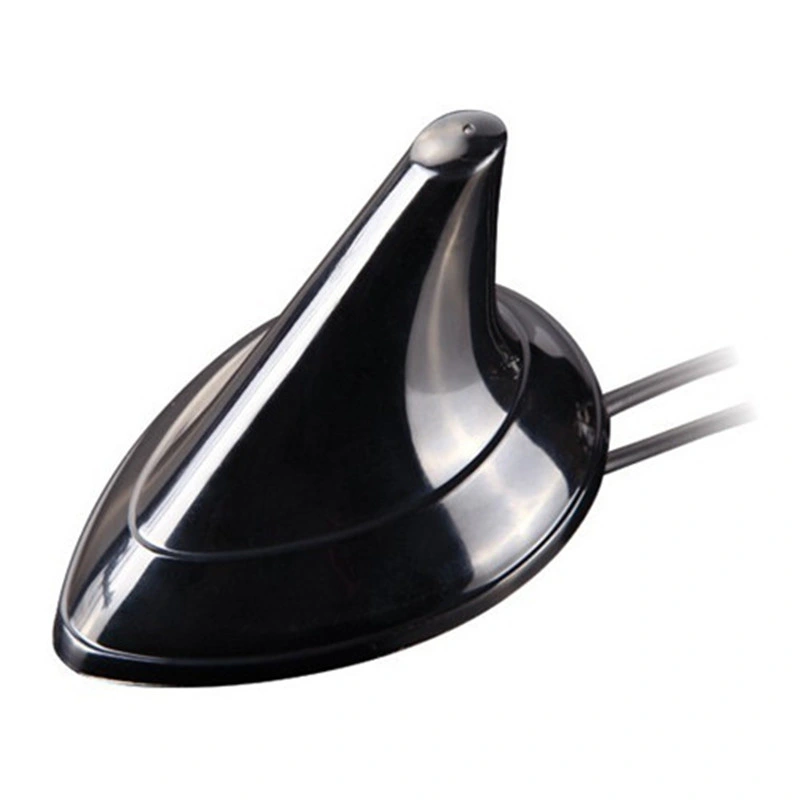

Gl-Dy070 GPS+GSM+Am/FM Combo Antenna
Introducing the Gl-DY070 GPS+GSM+Am/FM Combo Antenna, designed and manufactured by ZHENGZHOU LEHENG ELECTRONIC TECHNOLOGY CO., LIMITED. This versatile antenna combines GPS, GSM, and Am/FM capabilities, making it the perfect solution for communication and car antenna needs.
- Features:
- GPS+GSM+Am Antenna/GPS+3G Antennae/Glonass+GSM+FM Aerial/Glonass+3G Antenna/GPS/Glonass+GSM/3G Antenna/28dBi GPS Antenna/Car Antenna/GPS Antenna/3G Antenna/Black Colour/Cable Customized/Wholesale
- Application: Communication Antenna, Car Antenna
- Working Wavelength: Microwave
With its sleek black color and customizable cable options, this antenna seamlessly integrates into any car or communication setup. The GPS+GSM+Am/FM Combo Antenna provides reliable and high-performance signal reception, ensuring optimal connectivity and communication.
Whether you need a reliable GPS antenna for navigation or a strong GSM and Am/FM antenna for communication purposes, this versatile combo antenna has got you covered. Its 28dBi GPS antenna ensures accurate positioning, while the GSM and Am/FM capabilities guarantee clear and uninterrupted communication.
Experience the convenience and reliability of the Gl-DY070 GPS+GSM+Am/FM Combo Antenna. Order yours today and enjoy seamless connectivity and communication in your car or any other application.
