Product Description
| Item | Specifications | |
| Antenna | Frequency | GPS L1/L2/L5 |
| GLONASS G1/G2/G3 | ||
| COMPASS B1/B2/B3 | ||
| Galileo E1/L1/E2/E5a/E5b/E6 | ||
| Polarization | RHCP | |
| Axial Ratio | ≤3dB | |
| V.S.W.R | ≤1.5 | |
| Peak Gain | ≥5dBi | |
| Impedance | 50Ω | |
| Phase Center Error | ±2mm | |
| Horizontal coverage angle | 360° | |
| LNA | Gain | 40±2dB |
| Noise Figure | ≤1.5dB | |
| Passband fluctuation | ±1dB | |
| Supply Voltage | 3~5.5V DC | |
| Current Consumption | ≤45mA | |
| V.S.W.R | ≤2.0 | |

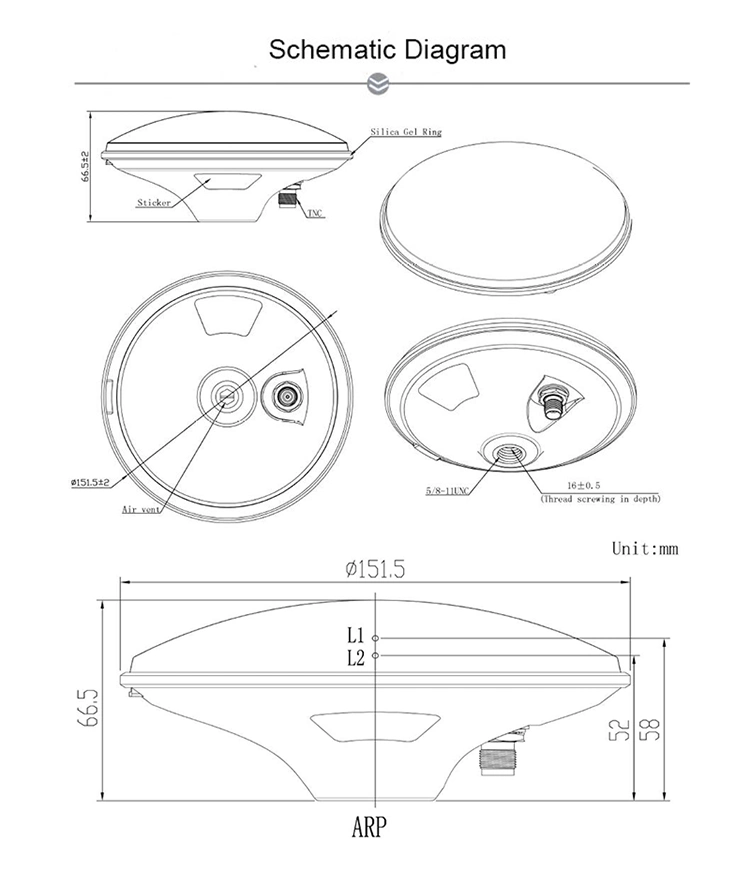

| Mechanical | Connector | TNC-K |
| Radome Material | ABS | |
| Mounting Method | Screw | |
| Environmental | Operating Temperature | -40ºC~+85ºC |
| Relative Humidity | Up to 95% | |
| Ingress Protection | IP67 (exclude Air vent in screw hole) | |
| Environmentally Friendly | ROHS Compliant | |
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 20 years.
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, Paypal, western union etc.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: #398 Zhenye Road, Jiaxing Economic Development Zone, Nanhu District, China. Just call us, we will pick you upwith no delay.
Q: How long of the warraty?
A: One year and can repair for the whole life.
