Basic Info.
Model NO.
OCBS-D4000
Network Management
Support Network Management
CPU
28nm Arm Qual-Core Cortex A53, 1.3-1.5GHz
System
Android 5.1
Operating System
Android5.1
RAM
1g RAM
Flash ROM
Standard 8g Nand Flash Storage
Sdk
Exclusive Use Software Development Kit
GPS
Support a-GPS
Camera
5 Million Pixels, with LED, Automatic Focusing
Hf
13.56MHz;ISO14443A Protocol
Bar-Code Reader
Support CCD / 1 D Scanning
Drop Specifications
6 Sides Can Bear Impact From 1.5m Drop
Communication Interface
USB2.0 Device
Transport Package
Individual Brown Box Packing
Specification
16*8*3cm
Trademark
OCOM/OEM/Neutual
Origin
China
HS Code
8471300000
Production Capacity
5000PCS/Month
Product Description

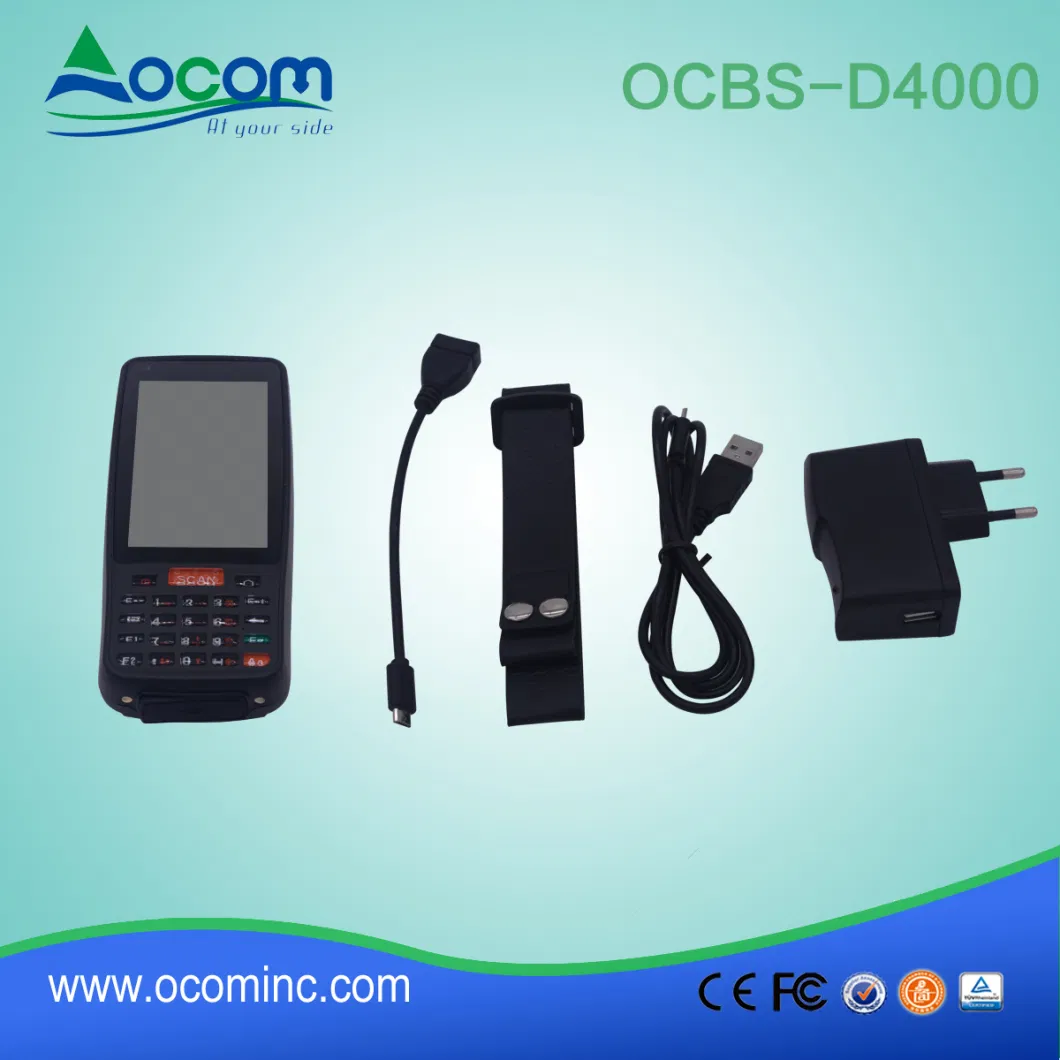

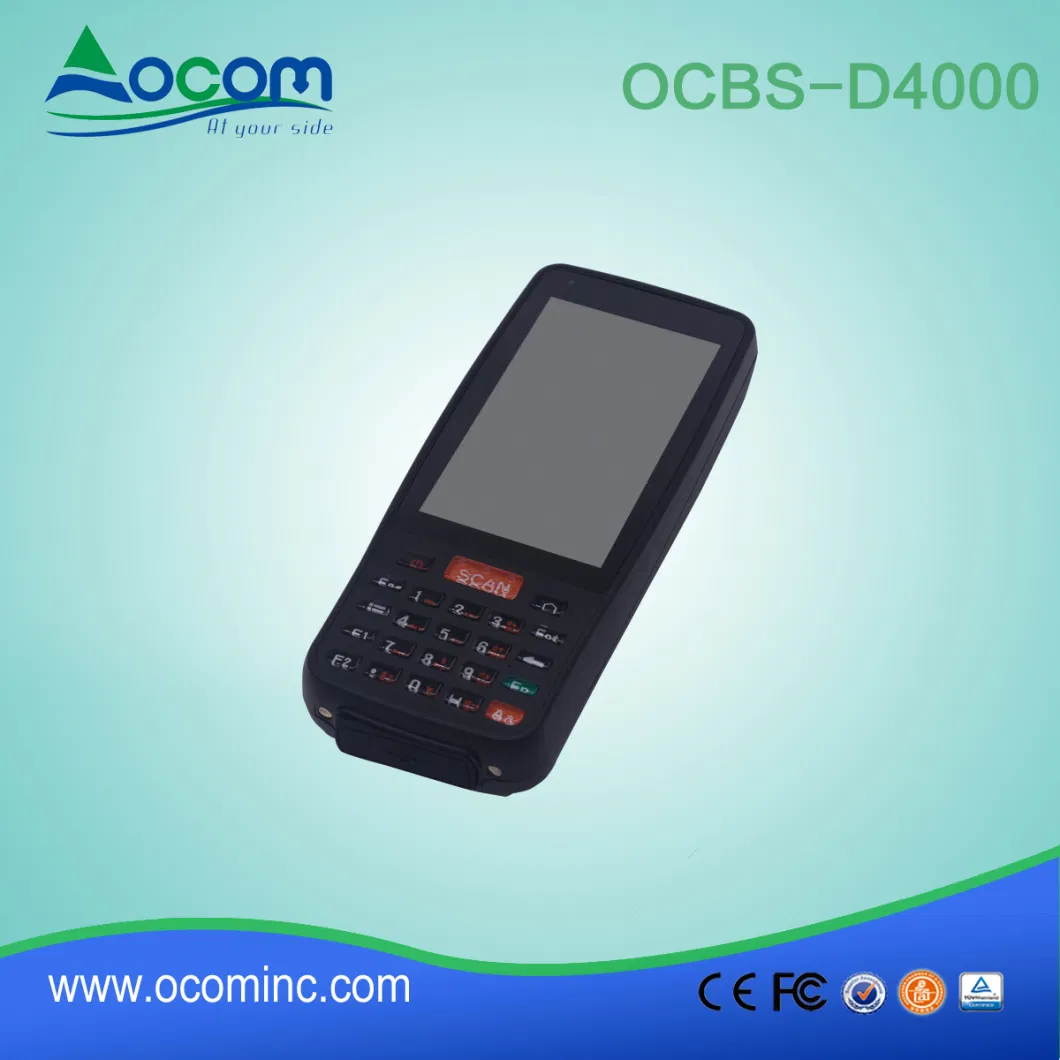

Android Based Industrial PDA
(Model No.:D4000)
FEATURE:
(Model No.:D4000)
FEATURE:
- Android5.1 Operation System;
- 1G RAM,8G ROM,TF card can up to 64 GB ;
- 28nm ARM Qual-core cortex A53,1.3-1.5GHz
- Support 4G LTE and 3G WCDMA;
- GPS,A-GPS satellite positioning;
- 5 million pixels, with LED, automatic focusing;
- SIM card, PSAM card, Micro SD (TF) Card Expand Port;
- Rechargeable Li-polymer Battery 3.7V 4000mAh ;
- Color 4.0 inch QVGA imitative glass durable touch screen;
- Sealed Environment: IP65;
- 6 sides can bear impact from 1.5m drop to cement floor.
| Physical Parameter | |
| Size | 157 mm x 76 mm x 28 mm |
| Weight | 324g |
| Display Screen | Color 4.0 inch QVGA imitative glass durable touch screen TFT-LCD, 650000 colors, 480*800 (QVGA size) The brightness of LED Backlight is adjustable |
| Expand Port | SIM card, , Micro SD (TF) Card |
| Communication Interface | USB2.0 Device, |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7V 4000mAh |
| Performance Parameter | |
| CPU | 28nm ARM Qual-core cortex A53,1.3-1.5GHz |
| RAM | 1G RAM |
| Flash ROM | Standard 8G NAND Flash Storage Micro SD/TF port (Max up to 64G) |
| Data Communication | |
| WI-FI | Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover |
| LTE | FDD-(B1 B3 B7 B8 B28), TDD-( B38 B39 B40 B41) |
| WCDMA /GSM | WCDMA: 850MHZ, Uplink:824MHZ-849MHZ; Downlink: 869MHZ-894MHZ 900MHZ, Uplink:880MHZ-915MHZ; Downlink: 925MHZ-960MHZ 1800MHZ,Uplink:1710MHZ-1785MHZ; Downlink: 1805MHZ-1880MHZ 1900MHZ ,Uplink:1850MHZ-1910MHZ; Downlink: 1930MHZ-1990MHZ |
| Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m |
| Operating Environment | |
| Operating Temperature | -10 to 50 degree |
| Storage Temperature | -25 to 70 degree |
| Environment Humidity | 0%RH--95%RH(no condensation) |
| Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature |
| Roll Specifications | 1000 times/0.5m, roll on 6 sides contact area |
| Sealed Environment | IP65 |
| Development Environment | |
| Operating System | Android5.1 |
| SDK | exclusive use software development kit |
| Supported Language | JAVA |
| Development Tool | Eclipse |
| A one-dimensional bar code collect | |
| One dimensional laser scanner | Mingde966 Standard ,Symbol 955, HoneywellN4313( Scanner function for optional) |
| Resolution | 4Mil minimum width |
| Ambient Light | 10000ft.candles(107640 lux) |
| Scanning Speed | 104(±)12/sec (bothway) |
| Scanning Angle | 47±35 deg(Standard) / 35±3deg (narrow angle) |
| Support Bar Code Type | UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| Two-dimensional bar code acquisition | |
| CCD Scanner | CCD 2D engine Standard, HONEYWELL N3680(2D scanner function for optional ) |
| Sensor Resolution | 752(level)×480(vertical)pels(gray level) |
FAQ
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.
3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by szocomtech.en.made-in-china.com.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
Why You Choose OCOM?
Leading One-Stop Supplier for POS and Auto-ID Related Products;
11 Years OEM/ODM Experience;
Qualified by Global Fortune 500 Companies;
Tier 1 customers including Unilever, O2, Star ...
2300+ Customers Cover 159 Countries;
Top 1 Level Trade Assurance upto 399,000.00usd 100% protect your money;
ISO9001, FCC, CE , Rohs, Soncap, POA, BIS Certificates ;
12+1 months warranty;
Shortlisted in "China Best Employer";
Belief: Integrity Based, Strive for Excellence, Win-win Cooperation.
